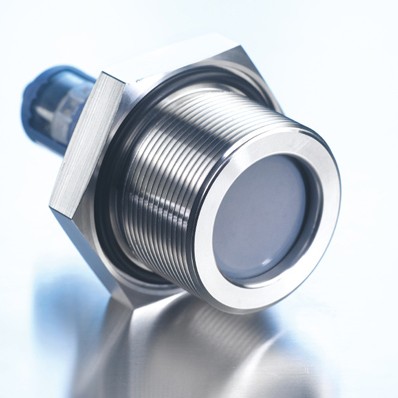

hps+340/DIU/TC/E/G2 Microsonic Chemical-Resistant stainless steel 350 – 8000 mm range Ultrasonic Distance Measuring Sensor, display, analog 4-20 mA, 0-10 V, PNP NO/NC outputs

The Microsonic hps+340/DIU/TC/E/G2 is a 350 – 8000 mm range Chemical & Pressure Resistant Ultrasonic Measuring Sensor in a stainless-steel housing with G2 mount, display, analogue and PNP NO/NC outputs.

Highlights:

• Sensing range of 350 – 8000 mm
• Available in two food and pharmaceutical grade chemical and pressure resistant housings
  • stainless-steel housing, (the sensor model on this page)
  • and a high purity PVDF plastic housing, sensor model # hps+340/DIU/TC/G2
• PTFE membrane for sensor face protection from aggressive media
• FFKM O-ring seals the housing for the highest possible chemical resistance
• G2 process connection thread
• Analogue 4-20 mA and 0-10 V outputs
• Digital 1 x PNP NO/NC output

Applications: The hps+ sensors are specifically designed for measuring fill levels of aggressive media, whether under normal pressure or in pressurized tanks up to 6 bar (87 PSI). Ideal for food, pharmaceutical, and chemical processing applications, these sensors are available in two body types: food-grade PVDF plastic and stainless steel.
