hps+340/DD/TC/G2 Microsonic Chemical-Resistant PVDF body, 350 – 8000 mm range Ultrasonic Distance Proximity Sensor, display, 2 x PNP NO/NC outputs

Product Name:
hps+340/DD/TC/G2 Microsonic Chemical-Resistant PVDF body, 350 – 8000 mm range Ultrasonic Distance Proximity Sensor, display, 2 x PNP NO/NC outputs

Mfr. Part # hps+340/DD/TC/G2 Categories , ,

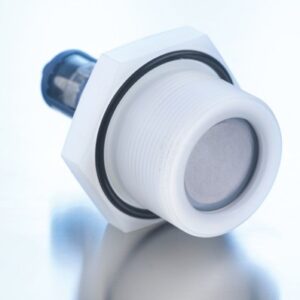

The Microsonic hps+340/DD/TC/G2 is a 350 – 8000 mm range Chemical & Pressure Resistant Ultrasonic Proximity Sensor in a PVDF plastic based housing with G2 mount, digital display, and 2 x PNP NO/NC outputs.

Highlights:

  • Sensing range of 350 – 8000 mm
  • Available in two food and pharmaceutical grade chemical and pressure resistant housings
  • PTFE membrane for sensor face protection from aggressive media
  • FFKM O-ring seals the housing for the highest possible chemical resistance
  • G2 process connection thread
  • Digital 2 x PNP NO/NC outputs

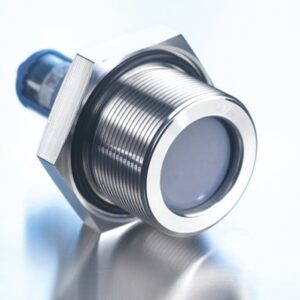

Applications: The hps+ sensors are specifically designed for measuring fill levels of aggressive media, whether under normal pressure or in pressurized tanks up to 6 bar (87 PSI). Ideal for food, pharmaceutical, and chemical processing applications, these sensors are available in two body types: food-grade PVDF plastic and stainless steel.

In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Chemical-Resistant Body
Part Number

hps+340/DD/TC/G2
Resolution

0.18 mm
Housing Material

PVDF | PTFE Film
Weight (g)

350
Switching Output

2 x PNP NO/NC | 200 mA
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

8000 mm
Body Size

G2 Connection

Data Sheet

Certifications
