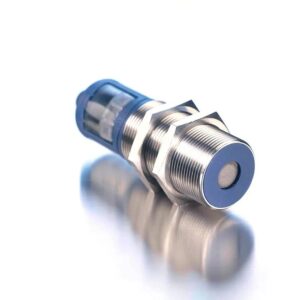

Microsonic Chemical-Resistant Body crm+35/D/TC/E 85 – 600 mm range Ultrasonic Proximity Sensor, stainless steel, digital display, PNP NO/NC output

Product Name:
Microsonic Chemical-Resistant Body crm+35/D/TC/E 85 – 600 mm range Ultrasonic Proximity Sensor, stainless steel, digital display, PNP NO/NC output

Mfr. Part # crm+35/D/TC/E Categories , ,

The Microsonic crm+35/D/TC/E is an 85 – 600 mm range chemical resistant Ultrasonic Proximity Sensor with a PNP NO/NC output.

Designed for tough application environments, this sensor boasts a stainless steel M30 body and a protective PEEK film on the sensing face.

It features a built-in digital display for operating information and provides sensor signals through a single programmable push/pull digital output.

Highlights:

  • – 600 mm
  • Stainless-steel body with PEEK film coated transducer
  •  PNP NO/NC output
  • Simple programming via Teach-in input on pin 5 with LinkControl
  • Resolution 0.025 mm
  • Easy mounting M30, IP67 housing with M12 | 5 pin plug connector

Applications: The chemical resistant, Microsonic crm+ sensors are perfect for non-contact set-point fill level control of chemically aggressive liquids or granules.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$388.64 US$388.64+
Unit Cost : US$
Extended Cost : US$388.64
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Chemical-Resistant Body
Part Number

crm+35/D/TC/E
Resolution

0.025 mm
Housing Material

Stainless Steel | PEEK Film
Weight (g)

270
Switching Output

PNP NO/NC | 200 mA
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Sensing Distance

600 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon

Certifications
