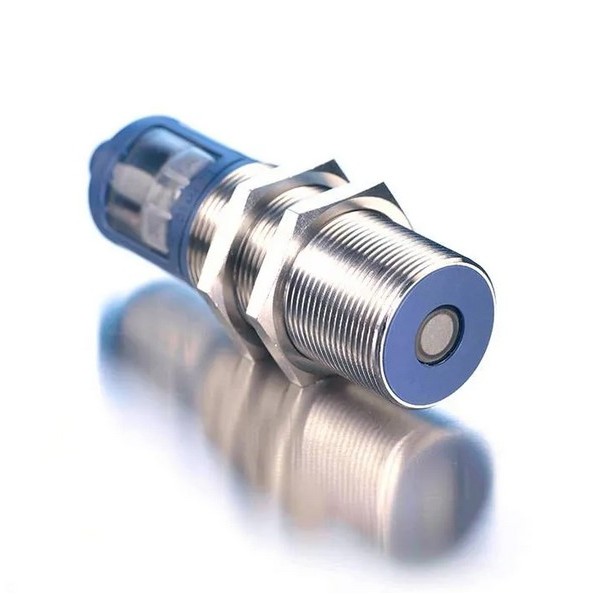

Microsonic Chemical-Resistant Body crm+25/F/TC/E 30 – 350 mm range Ultrasonic Proximity Sensor, stainless steel, display, push-pull output, IO-Link

Product Name:
Microsonic Chemical-Resistant Body crm+25/F/TC/E 30 – 350 mm range Ultrasonic Proximity Sensor, stainless steel, display, push-pull output, IO-Link

Mfr. Part # crm+25/F/TC/E Categories , ,

The Microsonic crm+25/F/TC/E is an 30 – 350 mm range chemical resistant Ultrasonic Proximity Sensor with a push/pull output, and IO-Link ready.

Designed for tough application environments, this sensor boasts a stainless steel M30 body and a protective PEEK film on the sensing face.

It features a built-in digital display for operating information and provides sensor signals through a single programmable push/pull digital output. Additionally, it is IO-Link enabled, allowing for sensor diagnostics and operational programming.

Highlights:

  • – 350 mm
  • Stainless-steel body with PEEK film coated transducer
  • Push/Pull output with IO-Link
  • Simple programming via a IO-Link or Teach-in input on pin 5 with LinkControl
  • Resolution 0.10 mm
  • Easy mounting M30, IP67 housing with M12 | 5 pin plug connector

Applications: The chemical resistant, Microsonic crm+ sensors are perfect for non-contact set-point fill level control of chemically aggressive liquids or granules.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$392.35 US$392.35+
Unit Cost : US$
Extended Cost : US$392.35
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Chemical-Resistant Body
Part Number

crm+25/F/TC/E
Model ID Number

29180
Resolution

0.10 mm
Housing Material

Stainless Steel | PEEK Film
Weight (g)

210
Switching Output

Push-pull | 100 mA
Interface

IO-Link
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

350 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon
