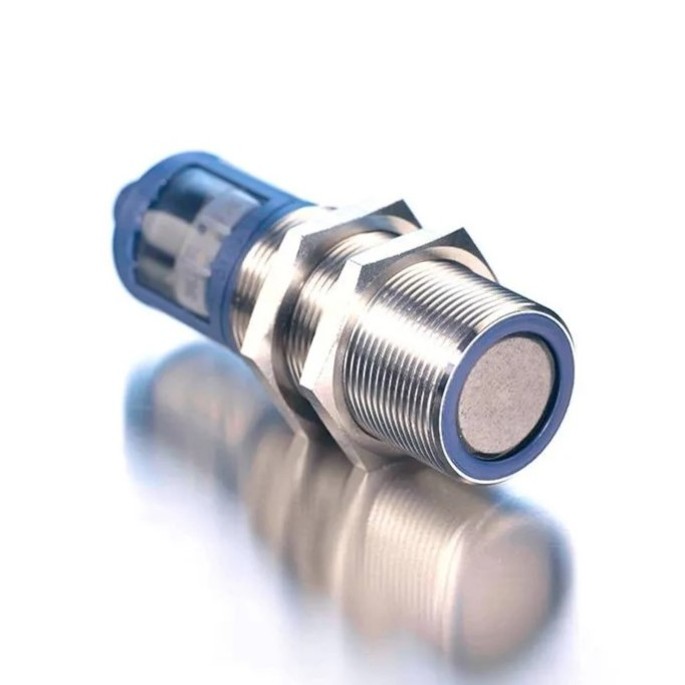

crm+130/IU/TC/E Microsonic 200 – 2000 mm range Chemical-Resistant Ultrasonic Distance Measurement Sensor, stainless-steel, digital display, 4-20 mA and 0-10 V outputs

Product Name:
crm+130/IU/TC/E Microsonic 200 – 2000 mm range Chemical-Resistant Ultrasonic Distance Measurement Sensor, stainless-steel, digital display, 4-20 mA and 0-10 V outputs

Mfr. Part # crm+130/IU/TC/E Categories , ,

The Microsonic crm+130/IU/TC/E is an 200 – 2000 mm range chemical resistant Ultrasonic Proximity Sensor with analogue 4-20 mA and 0-10 V outputs.

Designed for tough application environments, this sensor boasts a stainless steel M30 body and a protective PEEK film on the sensing face.

It features a built-in digital display for operating information and provides sensor signals through a single programmable push/pull digital output.

Highlights:

  • – 2000 mm
  • Stainless-steel body with PEEK film coated transducer
  • Analog 4-20 mA and 0-10 V outputs
  • Simple programming via Teach-in input on pin 5 with LinkControl
  • Resolution 0.18 mm
  • Easy mounting M30, IP67 housing with M12 | 5 pin plug connector

Applications: The chemical resistant, Microsonic crm+ sensors are perfect for non-contact set-point fill level control of chemically aggressive liquids or granules.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$607.67 US$607.67+
Unit Cost : US$
Extended Cost : US$607.67
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Chemical-Resistant Body
Part Number

crm+130/IU/TC/E
Resolution

0.18 mm
Housing Material

Stainless Steel | PEEK Film
Weight (g)

150
Switching Output

Analog 4-20mA | 0-10V
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

2000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon

Certifications
