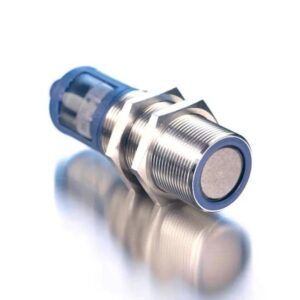

Microsonic Chemical-Resistant Body crm+130/DIU/TC/E 200 – 2000 mm range Ultrasonic Distance Measurement Sensor, stainless-steel, display, analog 4-20 mA, 0-10 V, and PNP NO/NC outputs

Product Name:
Microsonic Chemical-Resistant Body crm+130/DIU/TC/E 200 – 2000 mm range Ultrasonic Distance Measurement Sensor, stainless-steel, display, analog 4-20 mA, 0-10 V, and PNP NO/NC outputs

Mfr. Part # crm+130/DIU/TC/E Categories , ,

The Microsonic mic+130/DIU/TC is a 200 – 2000 mm range Ultrasonic Distance Measurement Sensor with a digital display, analog 4-20 mA, 0-10V, and 1 x PNP NO/NC outputs.

Highlights:

  • 0 – 2000 mm
  • Stainless-steel body with PEEK film coated transducer
  • Analogue 4-20 mA and 0-10V outputs
  • 1 x PNP NO/NC output
  • Simple programming via a Teach-in buttons T1 and T2 and the digital display
  • Resolution of 0.18 mm to 0.57 mm, depending on the analogue window
  • Easy mounting M30, IP67 housing with M12 | 5 pin plug connector.

Applications: The chemical resistant, Microsonic crm+ sensors are perfect for non-contact set-point fill level control of chemically aggressive liquids or granules.



In Stock: 0
Factory Lead-Time: Can ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$0.00 US$0.00+
Unit Cost : US$
Extended Cost : US$0
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Chemical-Resistant Body
Part Number

crm+130/DIU/TC/E
Resolution

0.18 mm
Housing Material

Stainless Steel | PEEK Film
Weight (g)

150
Switching Output

Analog 4-20mA | 0-10V | PNP NO/NC
Interface

Teach-in
Connection

M12 | 5-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

2000 mm
Body Size

M30

Data Sheet

Overview

  • Full details coming soon
