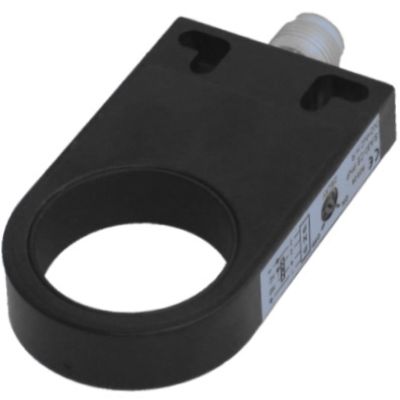

SIA Inductive Ring Sensor # SIA30-CE-PNP-NO+NC-R, 30.0 mm diameter, PNP NO/NC output, 2 metre cable connection

  • SIA30-CE-PNP-NO+NC-R 30.0 mm Inductive Ring Sensor PNP Output

Product Name:
SIA Inductive Ring Sensor # SIA30-CE-PNP-NO+NC-R, 30.0 mm diameter, PNP NO/NC output, 2 metre cable connection

Mfr. Part # SIA30-CE-PNP-NO+NC-R Categories , ,

The SIA30-CE-PNP-NO+NC-R, model # SIA000148 is a 30.0 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.

Details:

  • Minimum detectable object size: 4.0 x 7.0 mm
  • Minimum distance between sensors: 60 mm
  • Pulse stretching: up to 100 mS, selectable activate / deactivate
  • Switching frequency: up to 800 Hz
  • Compact size, easy two bolt installation
In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
Quantity Unit Price Ext. Price
1+ US$71.10 US$71.10+
Unit Cost : US$
Extended Cost : US$71.1
Add to Quote

Specifications

Product Type

Sensors
Brand

Dietz
Family

SIA Inductive Ring Sensors
Part Number

SIA30-CE-PNP-NO+NC-R
Resolution

4.0 mm
Housing Material

PA Plastic
Weight (g)

100
Switching Output

pnp | NO/NC
Sensitivity Adjustment

Potentiometer
Connection

Cable
IP Rating

IP65
Operating Temperature Range

-20 to +60 °C
Ring Diameter

30 mm
Detection Principle

Static
Ring Material

PA Plastic

Data Sheet

Overview

  • Full details coming soon
