Mfr. Part # SIA30-CE-NPN-NO+NC-HR Categories , ,

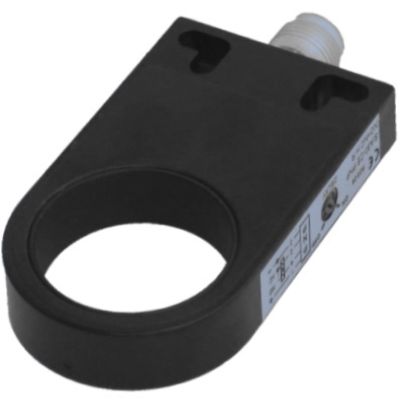

The SIA30-CE-NPN-NO+NC-HR, model # SIA000127 is a 30.0 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.

Details:

  • Minimum detectable object size: 4.0 x 7.0 mm
  • Minimum distance between sensors: 60 mm
  • Pulse stretching: up to 100 mS, selectable activate / deactivate
  • Switching frequency: up to 800 Hz
  • Compact size, easy two bolt installation
In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
Quantity Unit Price Ext. Price
1+ US$81.73 US$81.73+
Unit Cost : US$
Extended Cost : US$81.73
Add to Quote

Specifications

Product Type

Sensors

Brand

Dietz

Family

SIA Inductive Ring Sensors

Part Number

SIA30-CE-NPN-NO+NC-HR

Resolution

4.0 mm

Housing Material

PA Plastic

Weight (g)

100

Switching Output

npn | NO/NC

Sensitivity Adjustment

Potentiometer

Connection

M12 | 4-pin

IP Rating

IP65

Operating Temperature Range

-20 to +60 °C

Ring Diameter

30 mm

Detection Principle

Static

Ring Material

PA Plastic
