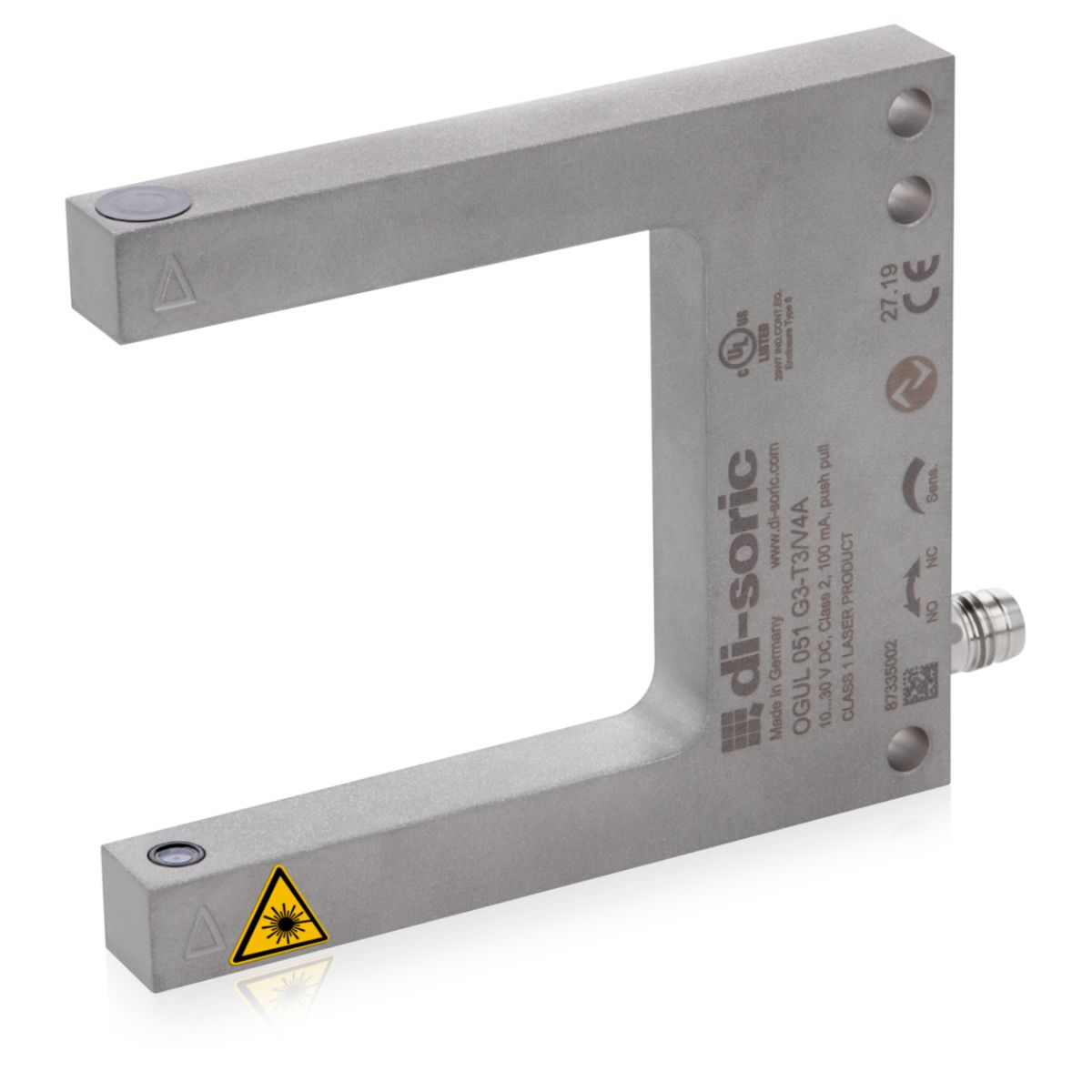

OGUL-051-G3-T3/V4A di-soric hygienic 50 mm U-shaped red light laser fork barrier, Push-pull 100 mA NO/NC, IO-Link

The di-soric OGUL-051-G3-T3/V4A is a hygienic stainless-steel laser fork light barrier with a 50 mm fork opening for precise detection of labels, edges, small parts, and product presence in washdown and contamination-sensitive production environments. This version uses a red laser light source, offers 0.05 mm resolution, and provides Push-pull 100 mA NO/NC switchable output with IO-Link for configuration, diagnostics, and changeover support.

Its V4A stainless-steel housing is suited to food processing, beverage production, pharmaceutical manufacturing, cosmetics production, and hygienic packaging systems where corrosion resistance, cleanable sensor surfaces, and stable switching are important. Compared with standard visible-red LED variants, this laser model is better suited to applications requiring finer resolution, smaller target detection, and more precise switching performance.

Key Features

• 50 mm fork opening: suited to hygienic detection tasks with a wider sensing gap than 30 mm laser models
• Red laser light source: better suited to finer target detection and higher precision applications
• 0.05 mm resolution: supports very precise detection of small parts, labels, and edges
• Push-pull 100 mA NO/NC switchable output: flexible integration into machine control systems
• IO-Link: supports parameter setting, diagnostics, and easier production changeover
• V4A stainless-steel housing: corrosion-resistant construction for hygienic and washdown environments
• Repeatable fork-sensor alignment: transmitter and receiver are aligned in one housing for stable sensing performance

Applications

The OGUL-051-G3-T3/V4A is used where very precise, repeatable detection is needed in hygienic production systems requiring a 50 mm fork opening.

• Label detection on packaging and product handling lines
• Edge detection in clean process and packaging applications
• Small-part detection in hygienic automation systems
• Product presence monitoring in food, beverage, pharmaceutical, and cosmetics equipment
• Applications requiring finer resolution and more precise switching than standard LED fork sensors
