Flexa ROHRflex-DUO PP 0270.032.126 / 10270032126

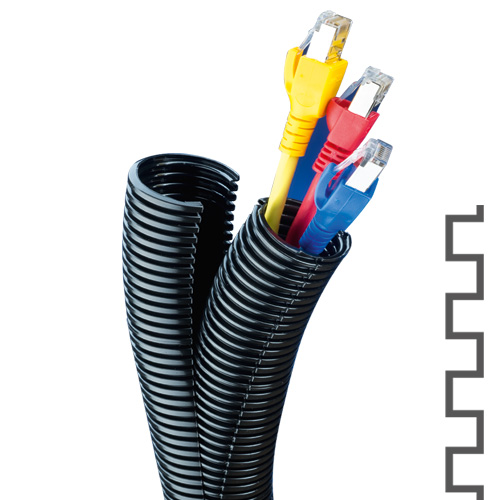

The Flexa ROHRflex-DUO PP 10270032126 (Old Part Number 0270.032.126) is a 26.8 x 34.4 mm black polypropylene (PP) plastic two-piece conduit featuring an interlocking, re-closeable, overlapping construction. Specially designed for retrofit and repair applications where it is not possible or practical to disconnect a harness to add a new conduit. Performs well at elevated temperatures and is free of phosphor and cadmium. Good for indoor or outdoor conduit installations, V2 (UL 94). Small 5 metre length roll.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$81.20 | US$81.20 |
| 2+ | US$77.14 | US$154.28+ |
Unit Cost : US$
Extended Cost : US$81.2
Specifications
| Package Size | 5m (16.4 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex-DUO PP |
| Part Number | 10270032126 |
| Part Number (Old) | 0270.032.126 |
| Colour | Black |
| OD Outside Diameter (mm) | 34.5 |
| ID Inside Diameter (mm) | 26.8 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 110 |
| Dynamic Bend Radius (mm) | 330 |
| Weight (kg|m) | 0.13 |
| Material | PP Plastic |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 135 |
| Extended Temperature (°C) | 150 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113283719 |
Data Sheet
Properties
- good chemical resistance
- free of phosphor and cadmium
- self-extinguishing
- flame retardant
- flexible
- UV-resistant
Applications
- Retrofit and Repair
- Switch Cabinet Construction
- Insulated Electrical Installations for Application Rules
- Machine and Plant Constructions acc. to DIN EN 60204
- Electrical Installations
Certifications
