Mfr. Part #
10270032110
Categories IBIS ROHRflex Corrugated Nylon Plastic Conduit 10 Roll, Plastic Conduits, ROHRflex-DUO PP, Split Corrugated

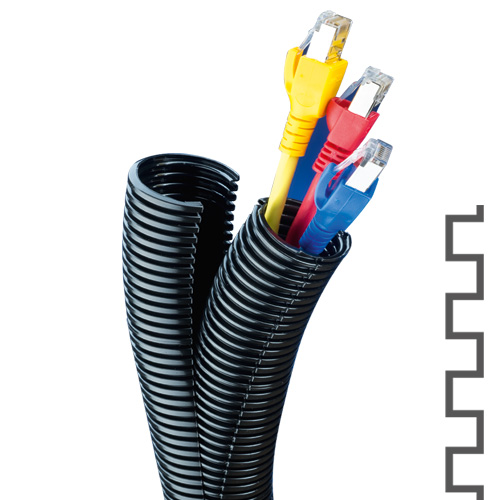

The Flexa ROHRflex-DUO PP 10270032110 (Old Part Number 0270.032.110) is a 11.0 x 16.0 mm black polypropylene (PP) plastic two-piece conduit featuring an interlocking, re-closeable, overlapping construction. Specially designed for retrofit and repair applications where it is not possible or practical to disconnect a harness to add a new conduit. Performs well at elevated temperatures and is free of phosphor and cadmium. Good for indoor or outdoor conduit installations, V2 (UL 94). Small 10 metre length roll.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$67.24 | US$67.24 |
2+ | US$63.88 | US$127.76+ |
Unit Cost : US$
Extended Cost : US$67.24
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex-DUO PP |
Part Number | 10270032110 |
Part Number (Old) | 0270.032.110 |
Colour | Black |
OD Outside Diameter (mm) | 15.8 |
ID Inside Diameter (mm) | 11 |
Corrugation Profile | Fine |
Static Bend Radius (mm) | 50 |
Dynamic Bend Radius (mm) | 150 |
Weight (kg|m) | 0.04 |
Package Size | 10m Per Roll |
Material | PP Plastic |
IP Rating | IP40 |
Low Temperature Rating (°C) | -25 |
High Temperature Rating (°C) | 135 |
Extended Temperature (°C) | 150 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- good chemical resistance
- free of phosphor and cadmium
- self-extinguishing
- flame retardant
- flexible
- UV-resistant
Applications
- Retrofit and Repair
- Switch Cabinet Construction
- Insulated Electrical Installations for Application Rules
- Machine and Plant Constructions acc. to DIN EN 60204
- Electrical Installations
