Mfr. Part #
10270032043
Categories IBIS ROHRflex Corrugated Nylon Plastic Conduit 25 Roll, Plastic Conduits, ROHRflex-DUO PP, Split Corrugated

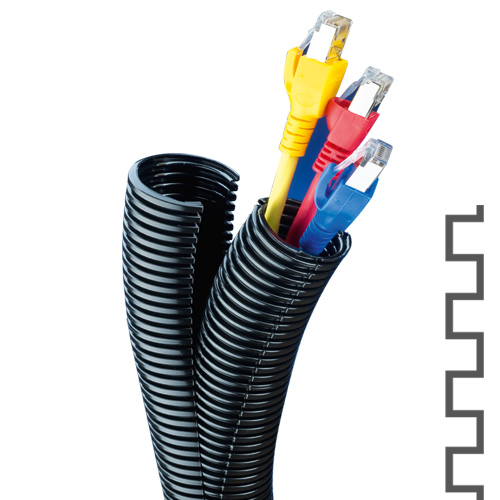

The Flexa ROHRflex-DUO PP 10270032043 (Old Part Number 0270.032.043) is a 43.9 x 53.9 mm black polypropylene (PP) plastic two-piece conduit featuring an interlocking, re-closeable, overlapping construction. Specially designed for retrofit and repair applications where it is not possible or practical to disconnect a harness to add a new conduit. Performs well at elevated temperatures and is free of phosphor and cadmium. Good for indoor or outdoor conduit installations, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$659.65 | US$659.65 |
2 | US$626.67 | US$1,253.34 |
5 | US$593.69 | US$2,968.43 |
10+ | US$560.70 | US$5,607.03+ |
Unit Cost : US$
Extended Cost : US$659.65
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex-DUO PP |
Part Number | 10270032043 |
Part Number (Old) | 0270.032.043 |
Colour | Black |
OD Outside Diameter (mm) | 54.5 |
ID Inside Diameter (mm) | 43.9 |
Corrugation Profile | Fine |
Static Bend Radius (mm) | 150 |
Dynamic Bend Radius (mm) | 450 |
Weight (kg|m) | 0.23 |
Package Size | 25m Per Roll |
Material | PP Plastic |
IP Rating | IP40 |
Low Temperature Rating (°C) | -25 |
High Temperature Rating (°C) | 135 |
Extended Temperature (°C) | 150 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- good chemical resistance
- free of phosphor and cadmium
- self-extinguishing
- flame retardant
- flexible
- UV-resistant
Applications
- Retrofit and Repair
- Switch Cabinet Construction
- Insulated Electrical Installations for Application Rules
- Machine and Plant Constructions acc. to DIN EN 60204
- Electrical Installations
