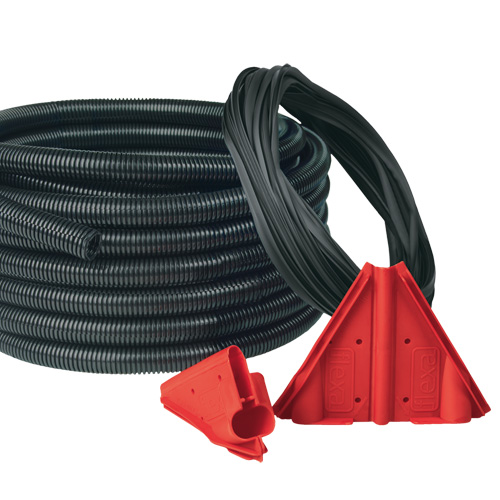

0255.202.110 / 10255202110 FLEXA FLEXAzip 9.8 x 13.0 mm Black PA6 Single-Slit Re-Closable Corrugated Conduit, 10 m Roll

The FLEXA FLEXAzip 0255.202.110 / 10255202110 is a 9.8 x 13.0 mm black PA6 single-slit, re-closable corrugated conduit, supplied as a 10 m roll. It is designed for open-ended cable protection, retrofit cable coverage, cable bundling, and fast installation around existing cable runs.

This conduit is used in repair and retrofit wiring installations, machinery and equipment wiring, automation systems, panel and cabinet wiring, and other applications where cables need simple mechanical protection while remaining accessible. The single-slit construction allows the conduit to be placed around cable runs without pulling the cable through a closed conduit.

Material:
Black PA6 corrugated conduit with TPE closing profile

FLEXAzip is intended for open-ended cable runs and simple cable coverage. For in-place wiring with pre-terminated harnesses, review ROHRflex-DUO two-piece interlocking conduit options and compatible DUO hinged fittings and locknuts for secure openable conduit termination.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$77.17 US$77.17
2+ US$73.31 US$146.62+
Unit Cost : US$
Extended Cost : US$77.17
Add to Quote

Specifications

Package Size

10m (32.8 ft) per roll

Product Type

Plastic Conduit

Brand

Flexa

Family

FLEXAzip

Part Number

10255202110

Part Number (Old)

0255.202.110

Colour

Black

OD Outside Diameter (mm)

13

ID Inside Diameter (mm)

9.8

Corrugation Profile

Fine

Static Bend Radius (mm)

20

Dynamic Bend Radius (mm)

60

Weight (kg|m)

0.03

Material

PA6 Plastic

IP Rating

IP40

Low Temperature Rating (°C)

-40

High Temperature Rating (°C)

100

Extended Temperature (°C)

130

Flammability Rating (UL 94)

HB

Customs Tariff Number

3917.32.0050

Country of Origin

Germany

GTIN / EAN Code

4025113262301

Data Sheet

Properties

  • oil resistant up to +80°C
  • benzine resistant
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • self-extinguishing
  • flame retardant
  • UV-resistant

Applications

  • Machine and Plant Constructions
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
