2041.701.029 / 12041701029 Flexa AIRflex-KUW-PU-AS 29.0 x 36.0 mm blue PU sheathed, spiral steel wire reinforced liquidtight plastic conduit, 10 metre roll

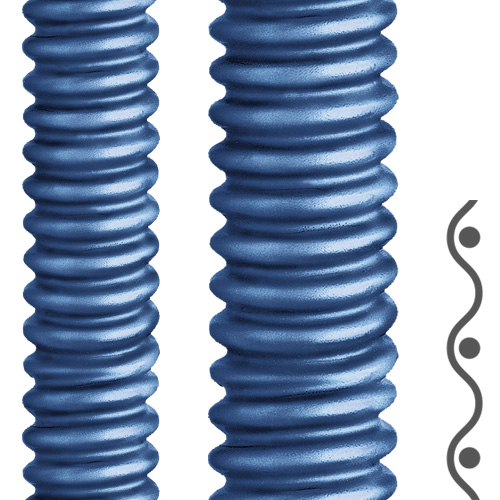

The Flexa AIRflex-KUW-PU-AS 12041701029 (Old Part Number 2041.701.029) is a 29.0 x 36.0 mm Blue polyurethane (PU) sheathed spiral steel wire reinforced liquidtight protective plastic conduit.
Small 10 metre (33 ft) length roll.
Excellent multi-purpose conduit for cable & wire protection in robotic and automated machinery systems. Optimum conduit performance for robot arms, multi-axis bending, machine building, railway industry, shipbuilding, automation wiring, and carrier guide chain solutions.
Material:
- spring steel wire helix with PU (polyurethane) sheathing
Also available on a 25 metre length coil, click here for part # 2040.701.029
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$492.72 | US$492.72 |
| 2+ | US$468.08 | US$936.17+ |
Unit Cost : US$
Extended Cost : US$492.72
Specifications
| Package Size | 10m (32.8 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | AIRflex-KUW-PU-AS |
| Part Number | 12041701029 |
| Part Number (Old) | 2041.701.029 |
| Colour | Blue |
| OD Outside Diameter (mm) | 36 |
| ID Inside Diameter (mm) | 29 |
| Static Bend Radius (mm) | 25 |
| Dynamic Bend Radius (mm) | 65 |
| Weight (kg|m) | 0.42 |
| Material | PU Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 120 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113133823 |
Data Sheet
Properties
- V2 accordingly to UL 94
- extremely flexible
- airtight and liquid tight
- high tenacity, abrasion resistance
- resistant to oil, benzine and grease
- widely resistant to solvents and acids
- free of halogen, silicone, cadmium
- microbe resistant
- good performance t low temperatures
- flame-resistant
- approved acc. to DIN EN ICE 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Applications with Guide Chains
- Suitable as Suction Conduit
