Mfr. Part #
12040701021
Categories AIRflex-KUW-PU-AS, IBIS AIRflex Conduit 50 Roll, Non-Corrugated, Plastic Conduits

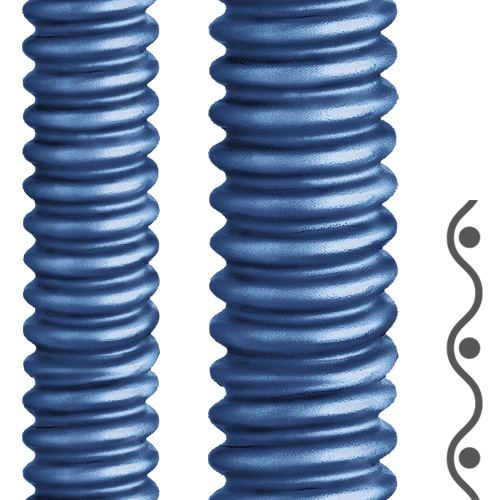

The Flexa AIRflex-KUW-PU-AS 12040701021 (Old Part Number 2040.701.021) is a 22.0 x 27.0 mm Blue polyurethane (PU) sheathed spiral steel wire reinforced liquidtight protective plastic conduit.
Excellent multi-purpose conduit for cable & wire protection in robotic and automated machinery systems. Optimum conduit performance for robot arms, multi-axis bending, machine building, railway industry, shipbuilding, automation wiring, and carrier guide chain solutions.
Material:
- spring steel wire helix with PU (polyurethane) sheathing
Also available on a shorter 10 metre coil, click here for part # 2041.701.021
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$1,835.42 | US$1,835.42 |
2 | US$1,743.65 | US$3,487.30 |
5 | US$1,651.88 | US$8,259.39 |
10+ | US$1,560.11 | US$15,601.07+ |
Unit Cost : US$
Extended Cost : US$1835.42
Specifications
Package Size | 50m Per Roll |
---|---|
Product Type | Plastic Conduit |
Brand | Flexa |
Family | AIRflex-KUW-PU-AS |
Part Number | 12040701021 |
Part Number (Old) | 2040.701.021 |
Colour | Blue |
OD Outside Diameter (mm) | 27 |
ID Inside Diameter (mm) | 22 |
Static Bend Radius (mm) | 20 |
Dynamic Bend Radius (mm) | 50 |
Weight (kg|m) | 0.26 |
Material | PU Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 100 |
Extended Temperature (°C) | 120 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- V2 accordingly to UL 94
- extremely flexible
- airtight and liquid tight
- high tenacity, abrasion resistance
- resistant to oil, benzine and grease
- widely resistant to solvents and acids
- free of halogen, silicone, cadmium
- microbe resistant
- good performance t low temperatures
- flame-resistant
- approved acc. to DIN EN ICE 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Applications with Guide Chains
- Suitable as Suction Conduit
