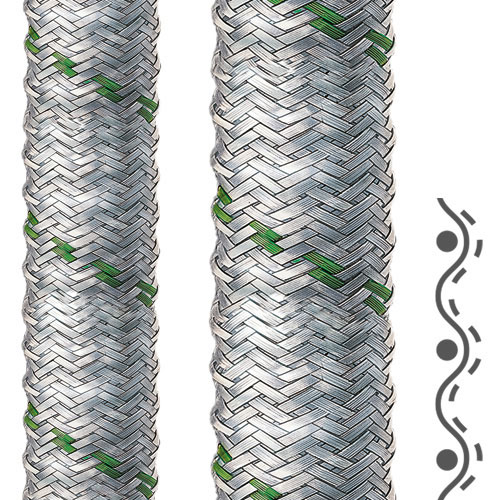

4231.101.012 / 14231101012 FLEXA AIRflex-KUW-EDU-AS 12.0 x 17.0 mm Metallic Steel-Braided Reinforced Plastic Conduit, 10 m Roll
The FLEXA AIRflex-KUW-EDU-AS 4231.101.012 / 14231101012 is a 12.0 x 17.0 mm metallic PVC-sheathed, spiral steel wire reinforced liquidtight plastic conduit with galvanized steel wire braiding, supplied as a 10 metre roll. It is designed for flexible cable and wire protection where liquid-tight sealing, abrasion resistance, shielding, and added mechanical protection are important.
This small-pack 10 metre roll provides the same AIRflex-KUW-EDU-AS conduit configuration as the standard 50 metre coil, supplied in a reduced roll length for maintenance, repair, prototyping, and lower-volume installation needs.
This conduit is used in machine and plant construction, injection moulding machines, metal cutting machines, automotive equipment, automation wiring, and electrical installations. The galvanized steel wire braiding provides added protection for demanding cable routing environments where friction, abrasion, or light hot metal chips may be present.
Material:
spring steel wire helix with PVC sheathing and galvanized steel wire braiding
Also available as a standard 50 metre roll: part # 4230.101.012.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$308.38 | US$308.38 |
| 2+ | US$292.96 | US$585.92+ |
Specifications
| Package Size | 10m (32.8 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | AIRflex-KUW-EDU |
| Part Number | 14231101012 |
| Part Number (Old) | 4231.101.012 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 17 |
| ID Inside Diameter (mm) | 12 |
| Static Bend Radius (mm) | 19 |
| Dynamic Bend Radius (mm) | 50 |
| Weight (kg|m) | 0.21 |
| Material | PVC |Galv |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113263926 |
Data Sheet
Properties
- very flexible
- airtight and liquid tight
- resistant to stretch and twist
- widely resistant to oil and acids
- free of silicone and cadmium
- high resistance to internal compression
- protection against hot swarfs
- shielding factor
Applications
- Machine and Plant Constructions
- Injection Moulding Machines
- Metal Cutting Machines
- Automotive
- Automation
- Electrical Installations
Certifications
