Flexa ROHRflex Multi PA6 0206.202.056 / 10206202056 56.3 x 67.2 mm large diameter black plastic corrugated conduit.

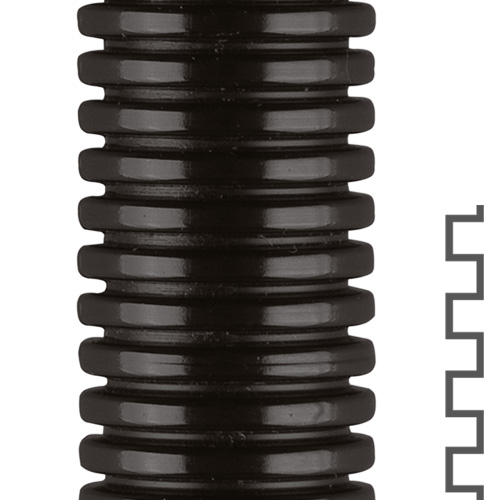

The Flexa ROHRflex Multi PA6 10206202056 (Old Part Number 0206.202.056) is a 56.3 x 67.2 mm protective black PA6 plastic large diameter corrugated conduit.
Applications include robot and gantry arms, pedestal to machine hook-up, and large quantity wire and cable trunking, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$670.83 | US$670.83 |
| 2+ | US$637.29 | US$1,274.58+ |
Unit Cost : US$
Extended Cost : US$670.83
Specifications
| Package Size | 10m (32.8 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex Multi PA6 |
| Part Number | 10206202056 |
| Part Number (Old) | 0206.202.056 |
| Colour | Black |
| OD Outside Diameter (mm) | 56 |
| ID Inside Diameter (mm) | 56.3 |
| Static Bend Radius (mm) | 130 |
| Dynamic Bend Radius (mm) | 270 |
| Weight (kg|m) | 0.46 |
| Material | PA6 Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113221735 |
Data Sheet
Properties
- non-crush
- air- and liquid-tight
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
- oil resistant up to +80°C
- benzine resistant
- widely resistant to acid and solvents
- HB acc. to UL 94
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
