Mfr. Part #
10207202056
Categories IBIS ROHRflex Corrugated Nylon Plastic Conduit 10 Roll, Large Diameter Corrugated, Plastic Conduits, ROHRflex Multi PA12

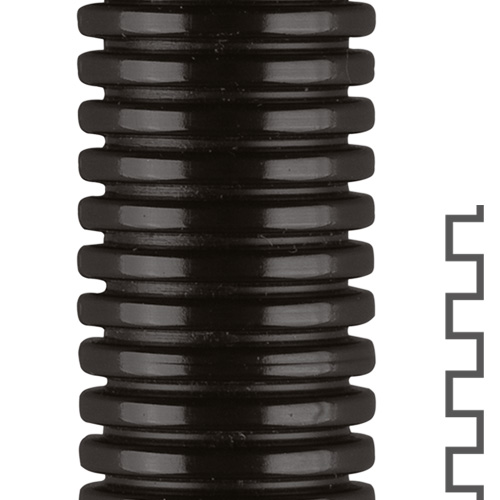

The Flexa ROHRflex Multi PA12 10207202056 (Old Part Number 0207.202.056) is a 56.3 x 67.2 mm protective black PA12 plastic large diameter corrugated conduit. Suitable for robot and gantry arm applications, pedestal to machine hook-up, and large quantity wire and cable trunking, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$997.44 | US$997.44 |
2+ | US$947.57 | US$1,895.14+ |
Unit Cost : US$
Extended Cost : US$997.44
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex Multi PA12 |
Part Number | 10207202056 |
Part Number (Old) | 0207.202.056 |
Colour | Black |
OD Outside Diameter (mm) | 56 |
ID Inside Diameter (mm) | 56.3 |
Static Bend Radius (mm) | 130 |
Dynamic Bend Radius (mm) | 270 |
Weight (kg|m) | 0.4 |
Package Size | 10m Per Roll |
Material | PA12 Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 100 |
Extended Temperature (°C) | 130 |
Flammability Rating (UL 94) | HB |
Data Sheet
Properties
- non-crush
- air- and liquid-tight
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
- oil and benzine resistant
- widely resistant to acids and solvents
- especially suitable for applications with frequently reversed bending cycles
- HB acc. to UL 94
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
