Flexa ROHRflex PU 0289.932.036 / 10289932036

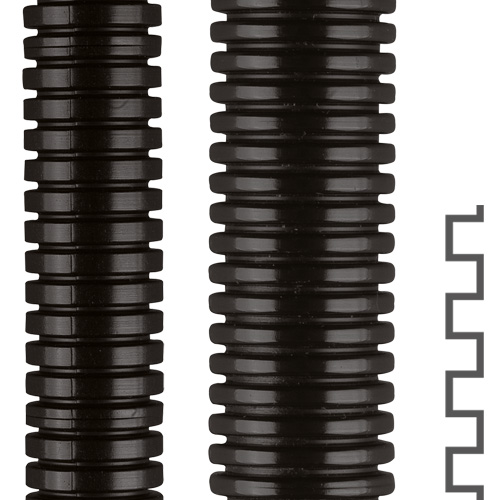

The Flexa ROHRflex PU 10289932036 (Old Part Number 0289.932.036) is a 35.5 x 42.5 mm black polyurethane (PU) all-plastic corrugated tubing with a coarse profile. It features high flexibility, good chemical and microbe resistance, high abrasion resistance, with excellent low temperature qualities. Designed for special projects and OEM applications where a unique conduit solution is required, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$651.47 | US$651.47 |
| 2 | US$618.90 | US$1,237.79 |
| 5 | US$586.32 | US$2,931.62 |
| 10+ | US$553.75 | US$5,537.50+ |
Unit Cost : US$
Extended Cost : US$651.47
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PU |
| Part Number | 10289932036 |
| Part Number (Old) | 0289.932.036 |
| Colour | Black |
| OD Outside Diameter (mm) | 42.5 |
| ID Inside Diameter (mm) | 35.5 |
| Corrugation Profile | Coarse |
| Static Bend Radius (mm) | 80 |
| Dynamic Bend Radius (mm) | 150 |
| Weight (kg|m) | 0.17 |
| Material | PU Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113195265 |
Data Sheet
Properties
- air- and liquid-tight
- oil, benzine and grease resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- high tenacity and abrasion resistance
- outstanding qualities at low temperatures
- very flexibile
- microbe resistant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive especially for Engine Installations
- Shipbuilding
- Automation
- Electrical Installations
Certifications
