Mfr. Part #
10233209016
Categories Corrugated Nylon, IBIS ROHRflex Corrugated Nylon Plastic Conduit 50 Roll, Plastic Conduits, ROHRflex PA6-S

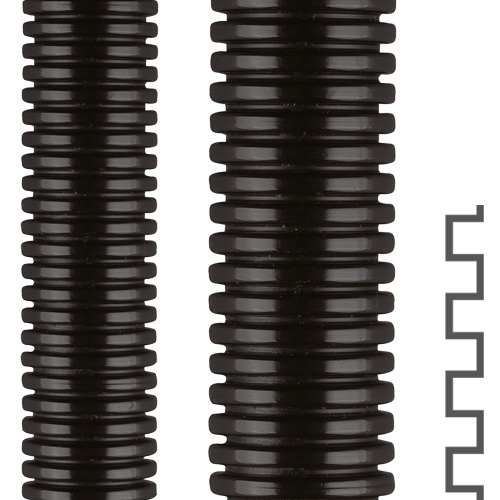

The Flexa ROHRflex PA6-S 10233209016 (Old Part Number 0233.209.016) is a 16.5 x 21.2 mm black PA6 plastic conduit, with a fine corrugation profile. This conduit has better properties than the general purpose PA6-L but not to the level of the PA6 conduits. A good general purpose corrugated conduit for installations requiring a better low temperature rating or a higher level of approvals for railway applications. Other applications include packaging machinery, labelling machinery, robotics, automated equipment, and general factory wiring applications indoors and outdoors, V2 (UL 94), CSA/UR.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$259.28 | US$259.28 |
2 | US$246.32 | US$492.63 |
5 | US$233.35 | US$1,166.76 |
10+ | US$220.39 | US$2,203.88+ |
Unit Cost : US$
Extended Cost : US$259.28
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex PA6-S |
Part Number | 10233209016 |
Part Number (Old) | 0233.209.016 |
Colour | Black |
OD Outside Diameter (mm) | 21.2 |
ID Inside Diameter (mm) | 16.5 |
Corrugation Profile | Fine |
Static Bend Radius (mm) | 45 |
Dynamic Bend Radius (mm) | 75 |
Weight (kg|m) | 0.06 |
Package Size | 50m Per Roll |
Material | PA6 Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Extended Temperature (°C) | 150 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant [black]
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
