0261.209.014 / 10261209014 ROHRflex® PA6-L 14.3 x 18.2 mm signal Orange, e-Mobility certified ECE-R 118.03, fine profile corrugated nylon conduit

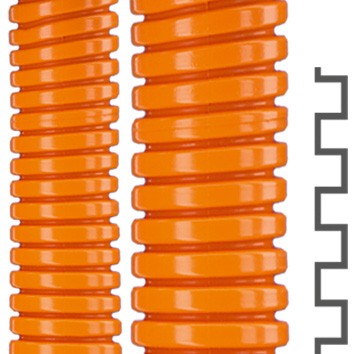

The Flexa ROHRflex PA6-L 10261209014 (Old Part Number 0261.209.014) is a 14.3 x 18.2 mm Orange PA6 plastic e-Mobility certified fine corrugation conduit.

The PA6-L conduit in signal colour Orange is certified according to fire protection standard ECE-R 118.03, appendix 7 and 8 and is intended for wire bundling and mechanical protection of cables and wires in electric buses and other mass transit EVs.

It’s also good for conduit installations of all types including packaging machinery, labelling machinery, robotics, automated equipment, and general factory wiring applications indoors and outdoors, HB (UL 94), CSA/UR.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$217.91 US$217.91
2 US$207.01 US$414.03
5 US$196.12 US$980.60
10+ US$185.22 US$1,852.24+
Unit Cost : US$
Extended Cost : US$217.91
Add to Quote

Specifications

Product Type

Plastic Conduit

Brand

Flexa

Family

ROHRflex PA6-L

Part Number

10261209014

Part Number (Old)

0261.209.014

Colour

Orange

OD Outside Diameter (mm)

18.5

ID Inside Diameter (mm)

14.3

Corrugation Profile

Fine

Static Bend Radius (mm)

40

Dynamic Bend Radius (mm)

65

Weight (kg|m)

0.05

Package Size

50m Per Roll

Material

PA6 Modified Plastic

IP Rating

IP68

Low Temperature Rating (°C)

-25

High Temperature Rating (°C)

120

Flammability Rating (UL 94)

HB

Data Sheet

Properties

  • air- and liquid-tight
  • oil resistant up to + 80° C
  • benzine resistant
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • flame retardant
  • UV-resistant

Applications

  • Machine and Plant Constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical Installations
  • Electric Vehicles
  • Electric Buses
  • E-Mobility

Certifications
