Mfr. Part #
10242232036
Categories Corrugated Nylon, Plastic Conduits, ROHRflex PA12-S

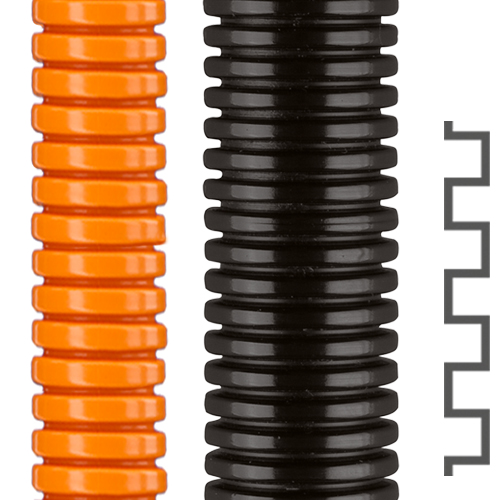

The Flexa ROHRflex PA12-S 10242232036 (Old Part Number 0242.232.036) is a 35.5 x 42.5 mm protective black PA12 plastic conduit, with a coarse corrugation profile. A general purpose, highly flexible conduit providing a good wiring solution for robotics and high motion applications and outdoor installations, V2 (UL 94), CSA/UR.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex PA12-S |
Part Number | 10242232036 |
Part Number (Old) | 0242.232.036 |
Colour | Black |
OD Outside Diameter (mm) | 42.5 |
ID Inside Diameter (mm) | 35.8 |
Corrugation Profile | Coarse |
Static Bend Radius (mm) | 90 |
Dynamic Bend Radius (mm) | 150 |
Weight (kg|m) | 0.14 |
Package Size | 25m Per Roll |
Material | PA12 Modified Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 100 |
Extended Temperature (°C) | 130 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- high alternate bending strength
- air- and liquid-tight
- oil and benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Robotics and High Motion Machinery
