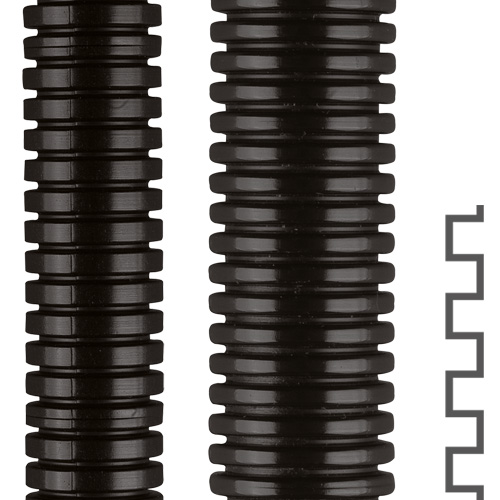

0242.202.036 / 10242202036 ROHRflex® PA12-S 36.0 x 42.5 mm Black Fine Corrugated Nylon Conduit
The Flexa ROHRflex® PA12-S 10242202036 (Old Part Number 0242.202.036) is a 36.0 x 42.5 mm Black premium PA12 plastic narrow corrugation conduit designed for high-performance protective cable routing.
Engineered for robotics-grade applications, this conduit delivers outstanding reverse bending flexibility, durable wall strength, a tight dynamic bend radius, and wide temperature and chemical resistance – it’s well suited for demanding dynamic and continuous-motion installations.
Ideal for routing cables in and around automated machinery, robotics, cobotics, e-Mobility systems, and other high-motion equipment, as well as general factory wiring in both indoor and outdoor installations.
For a complete protective wiring system solution, combine the Rohrflex® PA12-S conduits with our time-saving FLEXAquick® Quick-Connect IP66/IP68 sealing conduit Fittings. No tools required – simple, quick, easy to install, just snap on and go!
In Stock: 48
Stock: 48 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
48 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$646.50 | US$646.50 |
| 2 | US$614.18 | US$1,228.35 |
| 5 | US$581.85 | US$2,909.25 |
| 10+ | US$549.53 | US$5,495.25+ |
Unit Cost : US$
Extended Cost : US$646.5
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA12-S |
| Part Number | 10242202036 |
| Part Number (Old) | 0242.202.036 |
| Colour | Black |
| OD Outside Diameter (mm) | 42.5 |
| ID Inside Diameter (mm) | 36 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 80 |
| Dynamic Bend Radius (mm) | 150 |
| Weight (kg|m) | 0.15 |
| Material | PA12 Modified Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113303141 |
Data Sheet
Properties
- high reverse bending strength
- air- and liquid-tight
- oil and benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- UV-resistant
Applications
- Machine and Plant Construction
- Automotive, Bus
- Railway, Subway, Tram wiring
- Automation, Cobots
- Electrical Installations
- Robotics and High Motion Machinery
Certifications
