Flexa ROHRflex PA12-S 0236.209.029 / 10236209029
Mfr. Part #
10236209029
Categories IBIS ROHRflex Corrugated Plastic Conduit 25 Roll, Plastic Conduits, ROHRflex PA12-S, ROHRflex® Corrugated Nylon Conduit

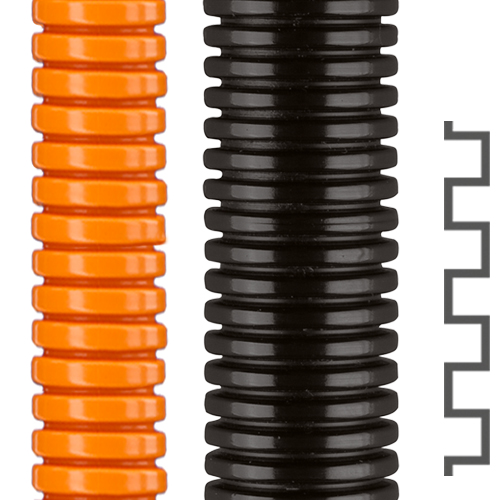

The Flexa ROHRflex PA12-S 10236209029 (Old Part Number 0236.209.029) is a 29.0 x 34.5 mm protective orange PA12 plastic conduit, with a fine corrugation profile. A general purpose, highly flexible conduit providing a good wiring solution for robotics and high motion applications and outdoor installations, V2 (UL 94), CSA/UR.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$444.12 | US$444.12 |
| 2 | US$421.91 | US$843.83 |
| 5 | US$399.71 | US$1,998.54 |
| 10+ | US$377.50 | US$3,775.02+ |
Unit Cost : US$
Extended Cost : US$444.12
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA12-S |
| Part Number | 10236209029 |
| Part Number (Old) | 0236.209.029 |
| Colour | Orange |
| OD Outside Diameter (mm) | 34.5 |
| ID Inside Diameter (mm) | 29 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 50 |
| Dynamic Bend Radius (mm) | 120 |
| Weight (kg|m) | 0.12 |
| Material | PA12 Modified Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113275189 |
Data Sheet
Properties
- high alternate bending strength
- air- and liquid-tight
- oil and benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Robotics and High Motion Machinery
Certifications
