0236.209.006 / 10236209006 ROHRflex® PA12-S 6.5 x 10.0 mm Orange, e-Mobility certified ECE-R 118.03, fine profile corrugated nylon conduit

  • 0236.209.006 / 10236209006 ROHRflex® PA12-S 6.5 x 10.0 mm Orange, e-Mobility certified ECE-R 118.03, fine profile corrugated nylon conduit

Product Name:
0236.209.006 / 10236209006 ROHRflex® PA12-S 6.5 x 10.0 mm Orange, e-Mobility certified ECE-R 118.03, fine profile corrugated nylon conduit

Flexa Logo
Mfr. Part # 10236209006 Categories , , ,

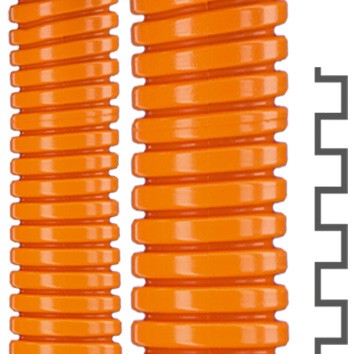

The Flexa ROHRflex® PA12-S 10236209006 (Old Part Number 0236.209.006) is a 6.5 x 10.0 mm Orange premium plastic e-Mobility certified fine corrugation conduit.

The PA12-S conduit in highly visible signal colour Orange is certified according to fire protection standard ECE-R 118.03, appendix 7 and 8 and is intended for wire bundling and mechanical protection of cables and wires in electric buses and other mass transit EVs.

This high-performance corrugated tubing offers exceptional flexibility, robust wall strength, wide temperature range, user-friendly handling, and broad chemical resistance.

Perfect for a wide range of wire & cable protection applications involving e-Mobility vehicles, passenger rail cars, locomotives, streetcars, buses, robotics, fiber optic bundle protection, automated equipment, and general factory wiring applications indoors and outdoors.

Combine the Rohrflex® PA12-S conduits with our FLEXAquick® Quick-Connect IP66 & IP68 sealing Fittings. No tools required – quick, easy to install, just snap on and go!

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$173.51 US$173.51
2 US$164.83 US$329.67
5 US$156.16 US$780.80
10+ US$147.48 US$1,474.84+
Unit Cost : US$
Extended Cost : US$173.51
Add to Quote

Specifications

Package Size

50m (164 ft) per roll
Product Type

Plastic Conduit
Brand

Flexa
Family

ROHRflex PA12-S
Part Number

10236209006
Part Number (Old)

0236.209.006
Colour

Orange
OD Outside Diameter (mm)

10
ID Inside Diameter (mm)

6.5
Corrugation Profile

Fine
Static Bend Radius (mm)

13
Dynamic Bend Radius (mm)

35
Weight (kg|m)

0.02
Material

PA12 Modified Plastic
IP Rating

IP68
Low Temperature Rating (°C)

-50
High Temperature Rating (°C)

100
Extended Temperature (°C)

130
Flammability Rating (UL 94)

V2
Customs Tariff Number

3917.32.0050
Country of Origin

Germany
GTIN / EAN Code

4025113275134

Data Sheet

Properties

  • high alternate bending strength
  • air- and liquid-tight
  • oil and benzine resistant
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • self-extinguishing
  • flame retardant
  • UV-resistant

Applications

  • Machine and Plant Constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical Installations
  • Robotics and High Motion Machinery
