5020.041.008 / 15020041008 RQT-PA FLEXAquick® grey plastic T distributor fitting for ROHRflex® corrugated plastic conduits, 2 x 15.8 mm OD1/OD3 and 15.8 mm OD2, IP68/IP69K sealing

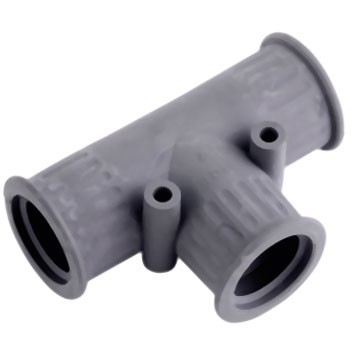

The FLEXAquick® RQT-PA 5020.041.008 / 15020041008 is a grey rigid polyamide T distributor fitting for branching ROHRflex® corrugated plastic conduits into three connected conduit paths. It uses the FLEXAquick® quick-connect system on all ports for fast, secure, and tool-free conduit installation with dependable mechanical retention and built-in sealing.
This fitting is designed for conduit branching applications using two 15.8 mm OD1/OD3 conduit connections and one 15.8 mm OD2 conduit connection. It provides an organized three-way junction for machine building, automation, OEM wire and cable harnessing, sensor and actuator distribution, and other industrial cable routing applications where IP68 / IP69K sealing is required.
Use the RQT-PA fitting with compatible ROHRflex® corrugated plastic conduits matched to the correct outside diameters on all three ports. It is well suited where secure three-way conduit branching, repeatable installation, and clean conduit routing are required.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$21.21 | US$21.21 |
| 5 | US$19.09 | US$95.45 |
| 10 | US$16.97 | US$169.68 |
| 20 | US$15.91 | US$318.15 |
| 50 | US$14.85 | US$742.35 |
| 100+ | US$13.79 | US$1,378.65+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQT-PA |
| Part Number | 15020041008 |
| Part Number (Old) | 5020.041.008 |
| Colour | Grey |
| Body Length C (mm) | 20. 0 |
| Body Length D (mm) | 80. 0 |
| Body Length E (mm) | 54. 5 |
| Material | PA6 Plastic |
| OD 1 (mm) | 2 x 15. 8 |
| OD 2 (mm) | 15. 8 |
| OD 3 (mm) | 2 x 15. 8 |
| ΦB1 (mm) | 23. 0 |
| ΦB2 (mm) | 23. 0 |
| ΦB3 (mm) | 23. 0 |
| Mounting Hole ΦF | 5. 5 |
| Weight (kg|100) | 2.2 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113218018 |
Data Sheet
Applications
- For Static and Dynamic Heavy Duty Applications Indoors and Outdoors
- Use in All Electrical Installations
- Machine Building, Robotics Wiring, Factoring Wiring
Certifications
