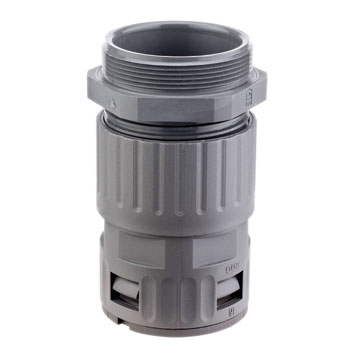

5020.034.015 / 15020034015 RQGZ-P PG 13.5 FLEXAquick® grey straight connector, 6.0 – 12.0 mm grip strain relief, for 21.2 mm OD conduit, IP68 sealing
The FLEXAquick® RQGZ-P 5020.034.015 (Old Part Number 5020.034.015) is a straight grey plastic conduit connector with PG 13.5 outer thread and integrated cable strain relief. It features the FLEXAquick® quick-connect system with an integrated snap-in and release sleeve and built-in sealing.
It is designed for fast, secure, and tool-free connection of ROHRflex® corrugated plastic conduit where reliable conduit termination and cable retention are both required.
This fitting is for 21.2 mm OD conduit and has a cable gripping range of 6.0 – 12.0 mm. It provides a reliable solution for machine building, automation, transportation, and other industrial cable protection applications requiring secure cable support and high sealing performance.
Use the RQGZ-P with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Choose from over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$17.63 | US$17.63 |
| 5 | US$15.87 | US$79.34 |
| 10 | US$14.10 | US$141.04 |
| 20 | US$13.22 | US$264.45 |
| 50 | US$12.34 | US$617.05 |
| 100+ | US$11.46 | US$1,145.95+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ-P |
| Part Number | 15020034015 |
| Part Number (Old) | 5020.034.015 |
| Colour | Grey |
| Thread Type | PG |
| Thread Size | 13.5 |
| Thread Length C (mm) | 9 |
| Body Length D (mm) | 70 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 21.2 |
| ΦI Inside Diameter (mm) | 12 |
| ΦB Max Outer Diameter (mm) | 29.5 |
| Weight (kg|100) | 2.2 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 6.0-12.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113183736 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
