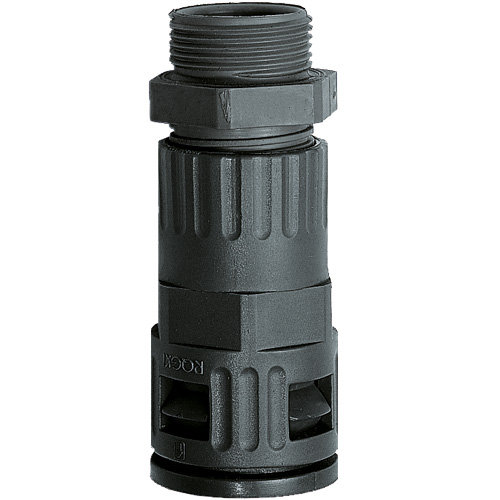

The Flexa RQGZ-N 15704042217 (Old Part Number 5704.042.217) is a straight Black plastic conduit connector with 1 1/4″ NPT outer thread and integrated cable strain relief all-in-one.
The two piece conduit fitting has a cable gripping range of 24.0 – 32.0 mm.
It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.
The RQGZ-N installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$47.69 | US$47.69 |
| 5 | US$42.92 | US$214.61 |
| 10 | US$38.15 | US$381.52 |
| 20 | US$35.77 | US$715.35 |
| 50+ | US$33.38 | US$1,669.15+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ-N |
| Part Number | 15704042217 |
| Part Number (Old) | 5704.042.217 |
| Colour | Black |
| Thread Type | NPT |
| Thread Size | 1 1/4" |
| Thread Length C (mm) | 19 |
| Body Length D (mm) | 100 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 42.5 |
| ΦI Inside Diameter (mm) | 32 |
| ΦB Max Outer Diameter (mm) | 52 |
| Weight (kg|100) | 8.9 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 24.0-32.0 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
