5020.031.250 / 15020031250 RQGZ-M M50 x 1.5 mm FLEXAquick® black straight connector, 27 – 35 mm grip strain relief, for 42.5 mm OD conduit, IP68 sealing

Product Name:
5020.031.250 / 15020031250 RQGZ-M M50 x 1.5 mm FLEXAquick® black straight connector, 27 – 35 mm grip strain relief, for 42.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020031250 Categories , , ,

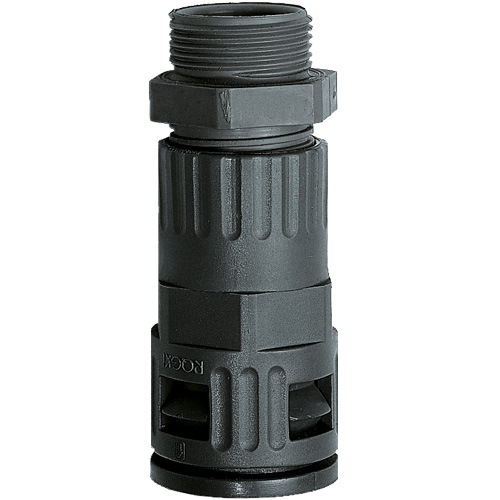

The Flexa RQGZ-M 15020031250 (Old Part Number 5020.031.250) is a straight Black plastic conduit connector with metric M50 x 1.5 mm outer thread and integrated cable strain relief all-in-one.

The two piece conduit fitting has a cable gripping range of 27.0 – 35.0 mm.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use the RQGZ-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find your best conduit solution from over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.



In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$47.38 US$47.38
5 US$42.64 US$213.21
10 US$37.90 US$379.04
20 US$35.54 US$710.70
50 US$33.17 US$1,658.30
100+ US$30.80 US$3,079.70+
Unit Cost : US$
Extended Cost : US$47.38
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGZ-M
Part Number

15020031250
Part Number (Old)

5020.031.250
Colour

Black
Thread Type

Metric
Thread Size

M50 x 1.5
Thread Length C (mm)

12
Body Length D (mm)

141
Material

PA6 Plastic
OD Outside Diameter (mm)

42.5
ΦI Inside Diameter (mm)

32
ΦB Max Outer Diameter (mm)

58
Weight (kg|100)

11.2
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Gripping Range (mm)

27.0-35.0
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113189387

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • impact-resistant
  • optimal strain relief and sealing of cables at the same time

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
