5020.031.063 / 15020031063 RQGZ-M M63 x 1.5 mm FLEXAquick® grey metric plastic thread strain relief fitting for 54.5 mm OD conduit, IP68 sealing

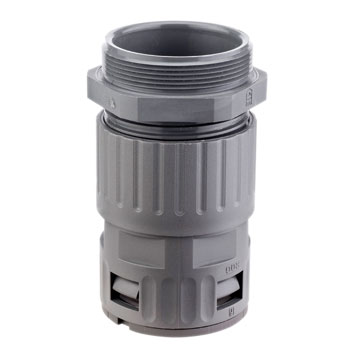

The FLEXAquick® RQGZ-M 5020.031.063 (Old Part Number 5020.031.063) is a straight grey plastic thread strain relief fitting with metric M63 x 1.5 outer thread. It features the FLEXAquick® quick-connect system with integrated snap-in and release sleeve, built-in sealing, and integrated cable strain relief.
It is designed for fast, secure, and tool-free connection of ROHRflex® corrugated plastic conduit where reliable conduit termination and cable retention are both required.
This fitting is sized for 54.5 mm OD conduit and supports a cable gripping range of 32.0–42.0 mm. It is used in machine building, automation, transportation, and other industrial cable protection applications requiring secure cable support and high sealing performance.
Use the RQGZ-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Find your best conduit solution from over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$61.84 | US$61.84 |
| 5 | US$55.66 | US$278.28 |
| 10 | US$49.47 | US$494.72 |
| 20 | US$46.38 | US$927.60 |
| 50 | US$43.29 | US$2,164.40 |
| 100+ | US$40.20 | US$4,019.60+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGZ-M |
| Part Number | 15020031063 |
| Part Number (Old) | 5020.031.063 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M63 x 1.5 |
| Thread Length C (mm) | 12 |
| Body Length D (mm) | 145 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54.5 |
| ΦI Inside Diameter (mm) | 44 |
| ΦB Max Outer Diameter (mm) | 68 |
| Weight (kg|100) | 16.3 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 32.0-42.0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113189479 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- impact-resistant
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
