5020.056.210 / 15020056210 RQG-N 2” NPT FLEXAquick® Black straight connector for 54.5 mm OD conduit, IP68 sealing

  • 5020.056.210 / 15020056210 RQG-N 2'' NPT FLEXAquick® Black straight connector for 54.5 mm OD conduit, IP68 sealing

Product Name:
5020.056.210 / 15020056210 RQG-N 2” NPT FLEXAquick® Black straight connector for 54.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020056210 Categories , , ,

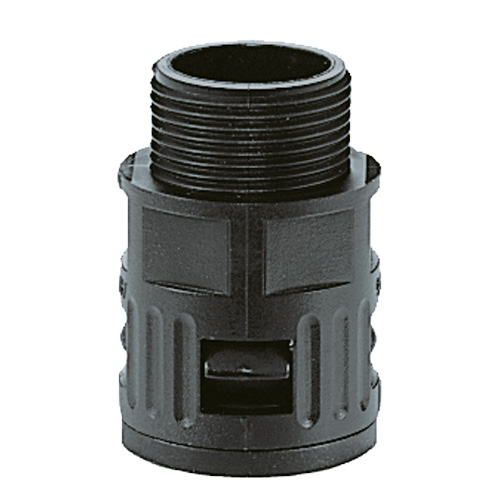

The Flexaquick® RQG-N 15020056210 (Old Part Number 5020.056.210) is a straight Black plastic conduit connector with 2″ NPT outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQG-N 2” NPT straight fitting with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of ROHRflex corrugated nylon conduits.



In Stock: 11
Stock: 11 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

11 in stock

Quantity Unit Price Ext. Price
1 US$28.08 US$28.08
5 US$25.27 US$126.36
10 US$22.46 US$224.64
20 US$21.06 US$421.20
50 US$19.66 US$982.80
100+ US$18.25 US$1,825.20+
Unit Cost : US$
Extended Cost : US$28.08
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQG-N
Part Number

15020056210
Part Number (Old)

5020.056.210
Colour

Black
Thread Type

NPT
Thread Size

2"
Thread Length C (mm)

21
Body Length D (mm)

60
Material

PA6 Plastic
OD Outside Diameter (mm)

54.5
ΦI Inside Diameter (mm)

48.5
ΦB Max Outer Diameter (mm)

64
Weight (kg|100)

4.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113173096

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
