Mfr. Part #
15020056201
Categories IBIS FLEXAquick Fitting 50 Pack, Plastic Body Fittings, Plastic Thread Straight, RQG-N
The Flexaquick RQG-N 15020056201 (Old Part Number 5020.056.201) is a straight Black plastic conduit connector with 1/4″ NPT outer thread.
It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.
Installs in seconds for “Quick connect on” fitting assembly or “Quick disconnect off” fitting disassembly. NO tools required!
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 500
Stock: 500 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
500 in stock
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$5.37 | US$5.37 |
5 | US$5.21 | US$26.04 |
10 | US$5.10 | US$51.02 |
15 | US$4.83 | US$72.50 |
25 | US$4.56 | US$114.11 |
50 | US$4.30 | US$214.80 |
100 | US$4.03 | US$402.75 |
250+ | US$3.76 | US$939.75+ |
Unit Cost : US$
Extended Cost : US$5.37
Specifications
Package Size | 50 pcs |
---|---|
Product Type | Plastic Body Fitting |
Brand | Flexa |
Family | RQG-N |
Part Number | 15020056201 |
Part Number (Old) | 5020.056.201 |
Colour | Black |
Thread Type | NPT |
Thread Size | 1/4" |
Thread Length C (mm) | 9.5 |
Body Length D (mm) | 34 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 10 |
ΦI Inside Diameter (mm) | 7 |
ΦB Max Outer Diameter (mm) | 17 |
Weight (kg|100) | 0.4 |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- highly resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
Related Products
You may also like…
-

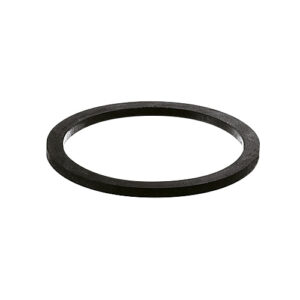

0331.000.002 / 10331000002 Flexa FR-N 1/4″ NPT flat Nitrile sealing washer
Add to cartAdd to Quote -

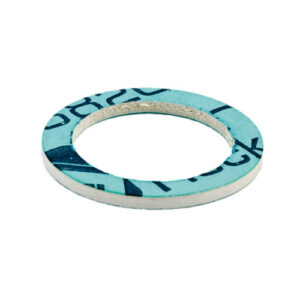

0331.001.002 / 10331001002 Flexa FRH-N 1/4″ NPT flat green Centellen® sealing washer
Add to cartAdd to Quote -
5020.057.201 / 15020057201 RQW-N 1/4” NPT FLEXAquick® 90° elbow connector for 10.0 mm OD conduit
Add to cartAdd to Quote -

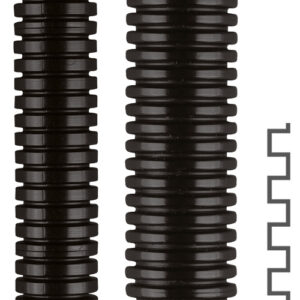

0236.202.006 / 10236202006 ROHRflex® PA12 6.5 x 10.0 mm black corrugated nylon conduit, for robotics, railway, high motion applications
Add to cartAdd to Quote -

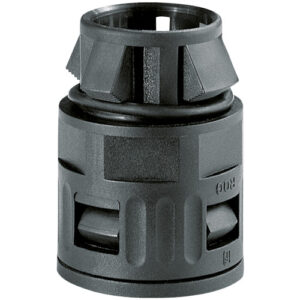

5020.082.207 / 15020082207 RQG1-S 12.0 mm knockout threadless “push-lock” FLEXAquick black straight connector for 10.0 mm OD conduit
