5020.065.211 / 15020065211 RQG-M M32 x 1.5 mm Metric FLEXAquick® Black straight connector for 28.5 mm OD conduit, IP68 sealing

Product Name:
5020.065.211 / 15020065211 RQG-M M32 x 1.5 mm Metric FLEXAquick® Black straight connector for 28.5 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020065211 Categories , , ,

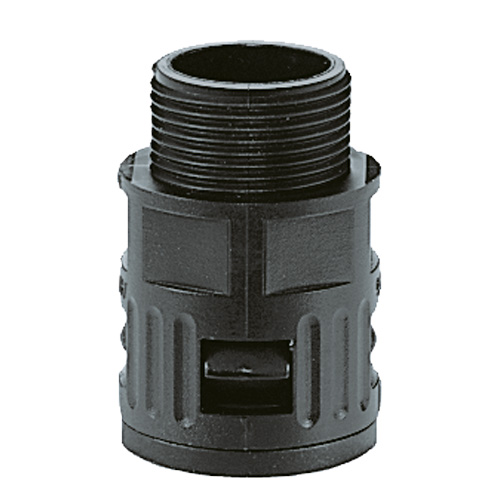

The Flexaquick® RQG-M 15020065211 (Old Part Number 5020.065.211) is a straight Black plastic conduit connector with metric M32 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQG-M M32 x 1.5 mm straight fitting with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.



In Stock: 164
Stock: 164 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

164 in stock

Quantity Unit Price Ext. Price
1 US$10.68 US$10.68
5 US$10.36 US$51.80
10 US$10.15 US$101.46
15 US$9.61 US$144.18
20 US$9.08 US$181.56
25 US$8.54 US$213.60
50 US$8.01 US$400.50
100 US$7.48 US$747.60
250+ US$6.94 US$1,735.50+
Unit Cost : US$
Extended Cost : US$10.68
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQG-M
Part Number

15020065211
Part Number (Old)

5020.065.211
Colour

Black
Thread Type

Metric
Thread Size

M32 x 1.5
Thread Length C (mm)

15
Body Length D (mm)

49
Material

PA6 Plastic
OD Outside Diameter (mm)

28.5
ΦI Inside Diameter (mm)

23.5
ΦB Max Outer Diameter (mm)

37
Weight (kg|100)

1.8
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113189783

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
