Mfr. Part #
15128021225
Categories IBIS FLEXAquick Fitting 10 Pack, Plastic Body Fittings, Plastic Thread Straight, RQG-Duo-M

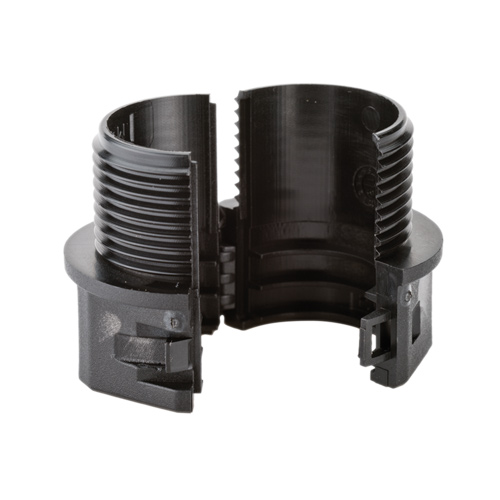

The Flexa RQG-Duo-M 15128021225 (Old Part Number 5128.021.225) is described as a straight plastic conduit connector with metric M25 x 1.5 outer thread. It features a hinged design that allows for installation in pre-mounted, retrofit applications.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$23.21 | US$23.21 |
5 | US$20.89 | US$104.45 |
10 | US$18.57 | US$185.68 |
20 | US$17.41 | US$348.15 |
50+ | US$16.25 | US$812.35+ |
Unit Cost : US$
Extended Cost : US$23.21
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQG-Duo-M |
Part Number | 15128021225 |
Part Number (Old) | 5128.021.225 |
Colour | Black |
Thread Type | Metric |
Thread Size | M25 x 1.5 |
Thread Length C (mm) | 15 |
Body Length D (mm) | 30 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 21.2 |
ΦI Inside Diameter (mm) | 21 |
ΦB Max Outer Diameter (mm) | 32 |
Weight (kg|100) | 0.8 |
Package Size | 10 pcs |
IP Rating | IP 50 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- to protect pre-assembled cables for retrospective installation or repairs
- simple assembly / disassembly
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
