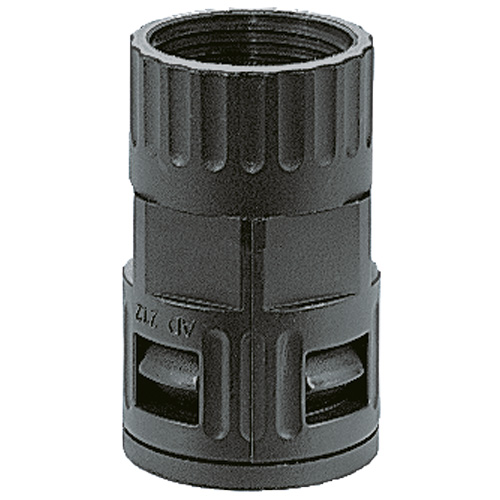

The Flexaquick RQG2-U 15020047209 (Old Part Number 5020.047.209) is a straight plastic conduit connector with 15/16″ -20 UNEF inner thread.

It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!

In Stock: 391
Stock: 391 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1

391 in stock

Quantity Unit Price Ext. Price
1 US$10.97 US$10.97
5 US$10.64 US$53.20
10 US$10.42 US$104.22
15 US$9.87 US$148.10
25 US$9.32 US$233.11
50 US$8.78 US$438.80
100 US$8.23 US$822.75
250+ US$7.68 US$1,919.75+
Unit Cost : US$
Extended Cost : US$10.97
Add to Quote

Specifications

Product Type

Plastic Body Fitting

Brand

Flexa

Family

RQG2-U

Part Number

15020047209

Part Number (Old)

5020.047.209

Colour

Black

Thread Type

UNEF

Thread Size

5/16" -20

Thread Length C (mm)

9.5

Body Length D (mm)

50.3

Material

PA6 Plastic

OD Outside Diameter (mm)

30.1

ΦI Inside Diameter (mm)

17

ΦB Max Outer Diameter (mm)

30.1

ΦB1 (mm)

30

Weight (kg|100)

1.8

Package Size

50 pcs

IP Rating

IP 68 | IP 69K

Low Temperature Rating (°C)

-40

High Temperature Rating (°C)

120

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automation
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Electrical Installations
