5020.047.206 / 15020047206 RQG2-U 3/4” – 20 UNEF female thread FLEXAquick® conduit adapter backshell for 15.8 mm OD conduit

Product Name:
5020.047.206 / 15020047206 RQG2-U 3/4” – 20 UNEF female thread FLEXAquick® conduit adapter backshell for 15.8 mm OD conduit

Mfr. Part # 15020047206 Categories FLEXAquick® RQG2-U, IBIS FLEXAquick Fitting 50 Pack, Plastic Body Fittings, Plastic Female Inner Thread

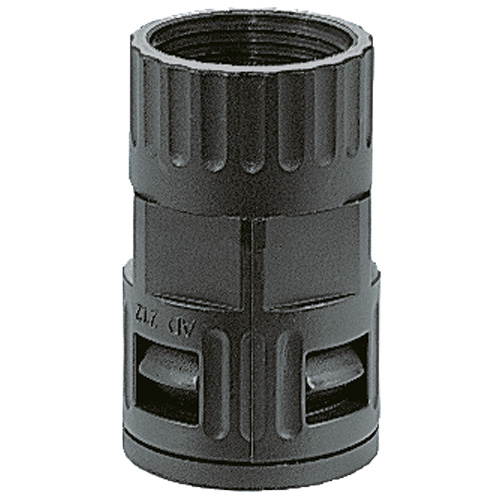

The Flexaquick RQG2-U 15020047206 (Old Part Number 5020.047.206) is a straight plastic conduit backshell adapter connector with 3/4″ – 20 UNEF female inner thread designed for use with MIL-C5015 CPC circular connectors.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

The RQG2-U adapts corrugated plastic conduits to MIL-C5015 type circular connectors such as: AMP CPC series, Amphenol, ITT Cannon-Trident, Souriau UTO, UTS, and UTG-6 series, TE DEUTSCH AFD series, and other circular connectors with UNEF thread connections.

In Stock: 177

Stock: 177 can ship immediately

Factory Lead-Time: Can ship in 1-2 weeks

Minimum: 1

Multiples: 1

177 in stock

Quantity	Unit Price	Ext. Price
1	US$9.48	US$9.48
5	US$9.20	US$45.98
10	US$9.01	US$90.06
15	US$8.53	US$127.98
25	US$8.06	US$201.45
50	US$7.58	US$379.20
100	US$7.11	US$711.00
250	US$6.64	US$1,659.00
500+	US$6.16	US$3,081.00+

Unit Cost : US$

Extended Cost : US$9.48

Specifications

Package Size	50 pcs
Product Type	Plastic Body Fitting
Brand	Flexa
Family	RQG2-U
Part Number	15020047206
Part Number (Old)	5020.047.206
Colour	Black
Thread Type	UNEF
Thread Size	3/4" -20, Shell size 12
Thread Length C (mm)	9.5
Body Length D (mm)	41.7
Material	PA6 Plastic
OD Outside Diameter (mm)	15.8
ΦI Inside Diameter (mm)	12.5
ΦB Max Outer Diameter (mm)	23.6
ΦB1 (mm)	23.6
Weight (kg\|100)	0.9
IP Rating	IP 68 \| IP 69K
Low Temperature Rating (°C)	-40
High Temperature Rating (°C)	120
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113149268
