Mfr. Part #
15500013209
Categories IBIS FLEXAquick Fitting 50 Pack, Metal Thread Strain Relief, Plastic Body Fittings, RQGKZ-P

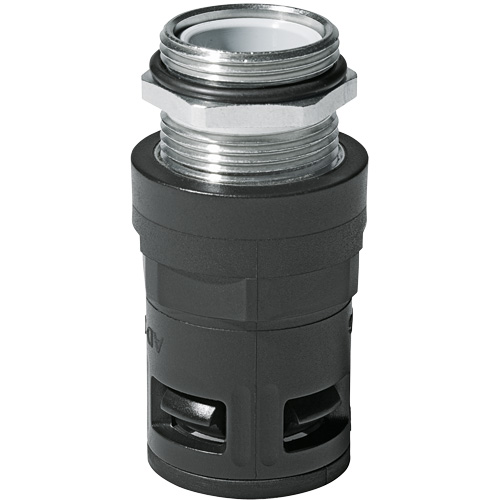

The Flexa RQGKZ-P 15500013209 (Old Part Number 5500.013.209) is described as a straight plastic conduit connector with PG 9 nickel-plated brass thread and integrated cable strain relief It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. It comes with a pre-mounted external O-ring. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$36.95 | US$36.95 |
5 | US$35.84 | US$179.21 |
10 | US$35.10 | US$351.03 |
15 | US$33.26 | US$498.83 |
25 | US$31.41 | US$785.19 |
50 | US$29.56 | US$1,478.00 |
100 | US$27.71 | US$2,771.25 |
250+ | US$25.87 | US$6,466.25+ |
Unit Cost : US$
Extended Cost : US$36.95
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQGKZ-P |
Part Number | 15500013209 |
Part Number (Old) | 5500.013.209 |
Colour | Black |
Thread Type | PG |
Thread Size | 9 |
Thread Length C (mm) | 6. 0 |
Body Length D (mm) | 56. 5 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 13. 0 |
ΦI Inside Diameter (mm) | 8. 5 |
ΦB Max Outer Diameter (mm) | 24. 0 |
Weight (kg|100) | 2.6 |
Package Size | 50 pcs |
IP Rating | IP68 | 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Gripping Range (mm) | 4. 0-7. 5 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- good for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
