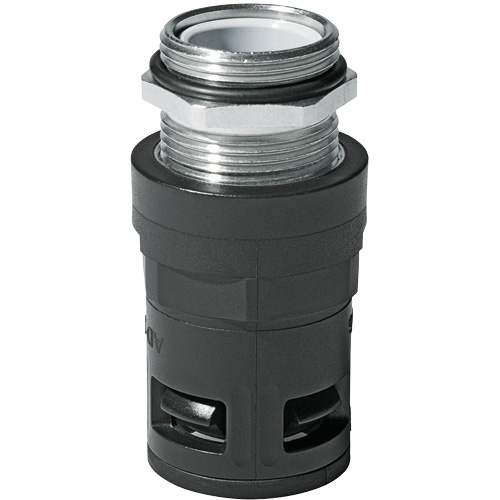

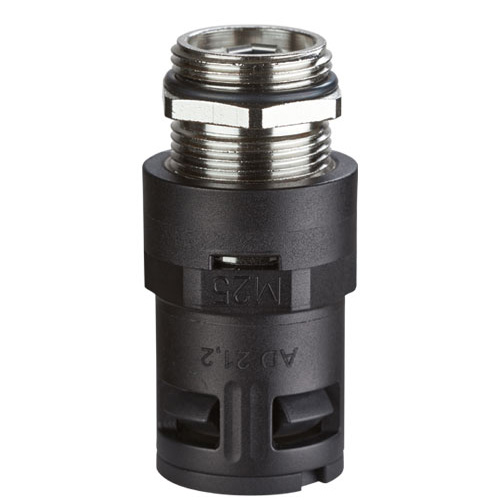

FLEXAquick® Metal Thread Strain Relief Fittings

No. FLEXAquick® metal thread strain relief fittings use a quick-connect locking design that eliminates the need for compression nuts and installation hand tools for conduit attachment. The integrated cord grip secures the cable while the fitting locks onto ROHRflex® flexible corrugated conduit.

FLEXAquick® metal thread strain relief fittings are available in Metric and PG thread standards. Refer to individual product pages to confirm available sizes and configurations.

FLEXAquick® metal thread strain relief fittings are designed to provide secure conduit termination while mechanically supporting and retaining the cable passing through the fitting. The integrated metal cord grip reduces stress on conductors by limiting cable movement at the connection point, helping protect against vibration, pulling forces, and mechanical strain in demanding industrial environments.

Both metal and plastic thread strain relief fittings use the same FLEXAquick® quick-connect conduit attachment system and integrated cord grip design. The metal thread fittings use nickel-plated brass threads, which offer higher mechanical strength and enhanced threaded retention compared with plastic thread fittings. This makes them well suited for applications requiring higher installation torque, vibration resistance, EMC performance, or fire-rated configurations.

Plastic thread versions provide a durable and cost-effective solution for many general industrial installations where extreme mechanical demands are not present.

Standard strain relief fittings provide mechanical cable retention and conduit termination. EMC bonding versions include conductive components that maintain electrical continuity between the cable shield and grounded equipment, helping support electromagnetic compatibility requirements in sensitive industrial and transportation applications.

EMC (Electromagnetic Compatibility) variants are designed to improve grounding continuity and reduce electromagnetic interference (EMI). The EMC bonding version enhances grounding through the fitting body by providing a conductive connection path between cable shields and grounded hardware.

FLEXAquick® EMC spring sleeve fittings have an integrated conductive spring that contacts the braided shield of multi-conductor cables to maintain effective shield continuity through the fitting.

The E30-rated version includes an internal intumescent filler that expands when exposed to fire, sealing internal openings within the fitting and helping prevent flame propagation through the conduit system. E30 indicates that the fire containment performance is maintained for a minimum of 30 minutes when installed in accordance with applicable specifications.

Yes. FLEXAquick® metal thread strain relief fittings are designed to integrate directly with ROHRflex® flexible corrugated conduits of the corresponding outer diameter. When installed in accordance with product specifications, the fitting securely locks onto the conduit corrugations while providing reliable cable retention and environmental sealing.

Yes. FLEXAquick® metal thread strain relief fittings can be mounted and dismounted multiple times. The quick-connect locking mechanism allows the conduit to be released by compressing the release ring, and the cord grip can be re-tightened as needed. When reinstalled in accordance with product specifications, the fitting maintains reliable mechanical performance and sealing capability.

Ingress protection performance varies by fitting design and configuration. Certain FLEXAquick® metal thread strain relief fittings are available with IP68 and IP69K ratings when installed in accordance with individual product specifications.
