5107.415.216 / 15107415216 RQGK-M M16 x 1.5 mm FLEXAquick® straight metal short thread connector for 15.8 mm OD conduit

Product Name:
5107.415.216 / 15107415216 RQGK-M M16 x 1.5 mm FLEXAquick® straight metal short thread connector for 15.8 mm OD conduit

Flexa Logo
Mfr. Part # 15107415216 Categories , , ,

The Flexaquick RQGK-M 15107415216 (Old Part Number 5107.415.216) is a straight Black plastic conduit connector with metric M16 x 1.5 mm nickel-plated brass short thread.

Thread length is 5.0 mm. Included with the fitting are both a Nitrile O-ring (OR-M) and a green Centellen flat sealing washer (FRH-M) for IP68/69K thread sealing.

The RQGK-M features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

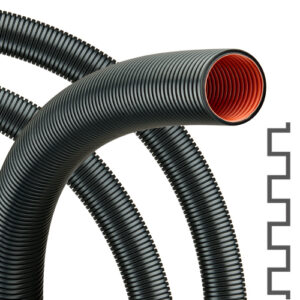

Use the RQGK-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.



In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$13.80 US$13.80
5 US$13.39 US$66.93
10 US$13.11 US$131.10
15 US$12.42 US$186.30
25 US$11.73 US$293.25
50 US$11.04 US$552.00
100 US$10.35 US$1,035.00
250 US$9.66 US$2,415.00
500+ US$8.97 US$4,485.00+
Unit Cost : US$
Extended Cost : US$13.8
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGK-M
Part Number

15107415216
Part Number (Old)

5107.415.216
Colour

Black
Thread Type

Metric
Thread Size

M16 x 1. 5
Thread Length C (mm)

5. 0
Body Length D (mm)

36. 5
Material

PA6 Plastic
OD Outside Diameter (mm)

15. 8
ΦI Inside Diameter (mm)

10. 0
ΦB Max Outer Diameter (mm)

27. 0
Weight (kg|100)

1.8
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113215338

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
