5107.413.212 / 15107413212 RQGK-M M12 x 1.5 mm FLEXAquick® straight metal short thread connector for 13.0 mm OD conduit

Product Name:
5107.413.212 / 15107413212 RQGK-M M12 x 1.5 mm FLEXAquick® straight metal short thread connector for 13.0 mm OD conduit

Flexa Logo
Mfr. Part # 15107413212 Categories , , ,

The Flexaquick RQGK-M 15107413212 (Old Part Number 5107.413.212) is a straight Black plastic conduit connector with metric M12 x 1.5 mm nickel-plated brass short thread.

Thread length is 5.0 mm. Included with the fitting are both a Nitrile O-ring (OR-M) and a green Centellen flat sealing washer (FRH-M) for IP68/69K thread sealing.

The RQGK-M features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

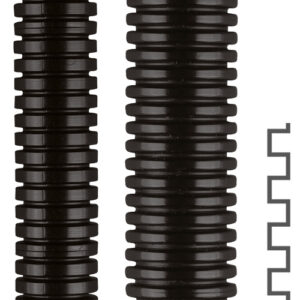

Use the RQGK-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.



In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$11.90 US$11.90
5 US$11.54 US$57.72
10 US$11.31 US$113.05
15 US$10.71 US$160.65
25 US$10.12 US$252.88
50 US$9.52 US$476.00
100 US$8.93 US$892.50
250 US$8.33 US$2,082.50
500+ US$7.74 US$3,867.50+
Unit Cost : US$
Extended Cost : US$11.9
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGK-M
Part Number

15107413212
Part Number (Old)

5107.413.212
Colour

Black
Thread Type

Metric
Thread Size

M12 x 1. 5
Thread Length C (mm)

5. 0
Body Length D (mm)

35. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

13. 0
ΦI Inside Diameter (mm)

7. 0
ΦB Max Outer Diameter (mm)

24. 0
Weight (kg|100)

1.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113281944

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
