Mfr. Part #
15107028225
Categories IBIS FLEXAquick Fitting 25 Pack, Metal Thread Straight, Plastic Body Fittings, RQGK-M

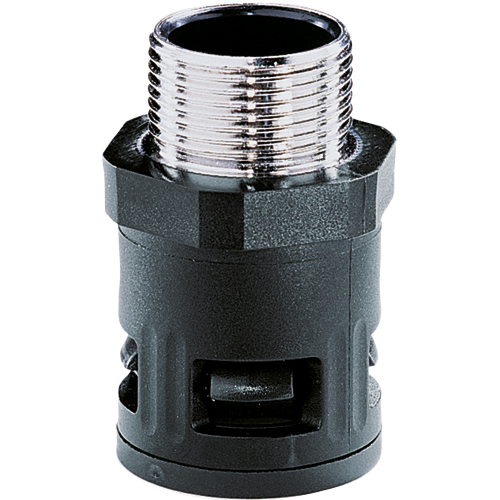

The Flexaquick RQGK-M 15107028225 (Old Part Number 5107.028.225) is a straight Black plastic conduit connector with metric M25 x 1.5 mm nickel-plated brass thread.
Thread length is 14.0 mm. It comes with both a Nitrile O-ring (OR) and a green Centellen flat sealing washer (FRH),
The RQGK-M features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing.
Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$37.75 | US$37.75 |
5 | US$36.62 | US$183.09 |
10 | US$35.86 | US$358.63 |
15 | US$33.98 | US$509.63 |
20 | US$32.09 | US$641.75 |
25 | US$30.20 | US$755.00 |
50 | US$28.31 | US$1,415.63 |
100+ | US$26.43 | US$2,642.50+ |
Unit Cost : US$
Extended Cost : US$37.75
Specifications
Product Type | Plastic Body Fitting |
---|---|
Brand | Flexa |
Family | RQGK-M |
Part Number | 15107028225 |
Part Number (Old) | 5107.028.225 |
Colour | Black |
Thread Type | Metric |
Thread Size | M25 x 1. 5 |
Thread Length C (mm) | 19. 0 |
Body Length D (mm) | 54. 0 |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 28. 5 |
ΦI Inside Diameter (mm) | 18. 0 |
ΦB Max Outer Diameter (mm) | 44. 0 |
Weight (kg|100) | 3.8 |
Package Size | 25 pcs |
IP Rating | IP 68 | IP 69K |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 120 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
