5107.010.212 / 15107010212 RQGK-M M12 x 1.5 mm FLEXAquick® straight metal thread connector for 10.0 mm OD conduit

Product Name:
5107.010.212 / 15107010212 RQGK-M M12 x 1.5 mm FLEXAquick® straight metal thread connector for 10.0 mm OD conduit

Flexa Logo
Mfr. Part # 15107010212 Categories , , ,

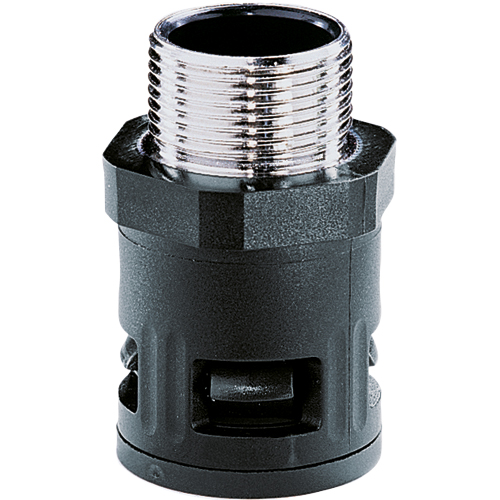

The Flexaquick RQGK-M 15107010212 (Old Part Number 5107.010.212) is a straight Black plastic conduit connector with metric M12 x 1.5 mm nickel-plated brass thread.

Thread length is 10.0 mm. Included with the fitting are both a Nitrile O-ring (OR-M) and a green Centellen flat sealing washer (FRH-M) for IP68/69K thread sealing.

The RQGK-M features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

Use the RQGK-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$11.54 US$11.54
5 US$11.19 US$55.97
10 US$10.96 US$109.63
15 US$10.39 US$155.79
25 US$9.81 US$245.23
50 US$9.23 US$461.60
100 US$8.66 US$865.50
250 US$8.08 US$2,019.50
500+ US$7.50 US$3,750.50+
Unit Cost : US$
Extended Cost : US$11.54
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQGK-M
Part Number

15107010212
Part Number (Old)

5107.010.212
Colour

Black
Thread Type

Metric
Thread Size

M12 x 1. 5
Thread Length C (mm)

10. 0
Body Length D (mm)

38. 5
Material

PA6 Plastic
OD Outside Diameter (mm)

10. 0
ΦI Inside Diameter (mm)

7. 0
ΦB Max Outer Diameter (mm)

20. 0
Weight (kg|100)

1.1
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113192448

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
