5020.019.216 / 15020019216 RQBK90DR-N 1″ NPT swivel thread FLEXAquick 90 degree bend elbow connector for 34.5 mm OD conduit

Product Name:
5020.019.216 / 15020019216 RQBK90DR-N 1″ NPT swivel thread FLEXAquick 90 degree bend elbow connector for 34.5 mm OD conduit

Flexa Logo
Mfr. Part # 15020019216 Categories , , ,

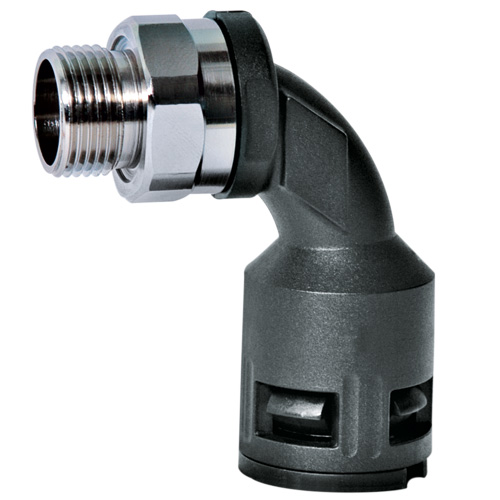

The Flexa RQBK90DR-N 15020019216 (Old Part Number 5020.019.216) is a Black plastic 90° bend elbow conduit connector with swivelling 1″ NPT metal thread.

Highlights:

  • thread length = 14.0 mm
  • turnable, swivelling nickel-plated brass outer thread, swivels both post & pre-installation
  • smooth bore gentle 90° bend elbow
  • includes sealing rings: one each of “OR type” O-ring and “FRH type” flat sealing ring

It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!

Use the RQBK90DR-N conduit connector with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$51.80 US$51.80
5 US$46.62 US$233.10
10 US$41.44 US$414.40
20 US$38.85 US$777.00
50 US$36.26 US$1,813.00
100+ US$33.67 US$3,367.00+
Unit Cost : US$
Extended Cost : US$51.8
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQBK90DR-N
Part Number

15020019216
Part Number (Old)

5020.019.216
Colour

Black
Thread Type

NPT
Thread Size

1"
Thread Length C (mm)

14. 0
Body Length E (mm)

95. 0
Body Length F (mm)

100. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

34. 5
ΦI Inside Diameter (mm)

24. 5
ΦB Max Outer Diameter (mm)

44. 0
Weight (kg|100)

17.4
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113250964

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening
  • swiveling also after installation

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
