Flexa RQBK45-M 5102.034.240 / 15102034240

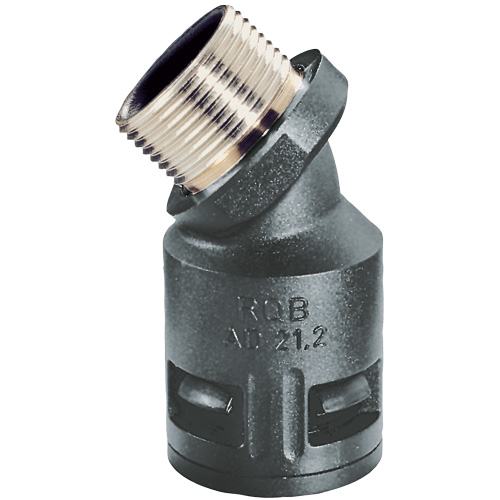

The Flexa RQBK45-M 15102034240 (Old Part Number 5102.034.240) is described as a plastic conduit connector, quick-type, bend 45°, metric M40 x 1.
5 nickel-plated brass outer thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. Included with the fitting are an O-ring and a flat sealing washer.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$39.65 | US$39.65 |
| 5 | US$35.69 | US$178.43 |
| 10 | US$31.72 | US$317.20 |
| 20 | US$29.74 | US$594.75 |
| 50 | US$27.76 | US$1,387.75 |
| 100+ | US$25.77 | US$2,577.25+ |
Unit Cost : US$
Extended Cost : US$39.65
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQBK45-M |
| Part Number | 15102034240 |
| Part Number (Old) | 5102.034.240 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M40 x 1. 5 |
| Thread Length C (mm) | 14. 0 |
| Body Length E (mm) | 73. 5 |
| Body Length F (mm) | 77. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 34. 5 |
| ΦI Inside Diameter (mm) | 29. 0 |
| ΦB Max Outer Diameter (mm) | 47. 0 |
| Weight (kg|100) | 9 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113213013 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
