4016.701.022 / 14016701022 Flexa SPR-CU-AS 22.0 x 27.0 mm flexible, stretch-resistant, galvanized steel conduit with tinned-copper wire over-braid

Product Name:
4016.701.022 / 14016701022 Flexa SPR-CU-AS 22.0 x 27.0 mm flexible, stretch-resistant, galvanized steel conduit with tinned-copper wire over-braid

Mfr. Part # 14016701022 Categories IBIS FLEXA Braided Flexible Metal Conduit 50 Roll, Metal Conduits, Non-Liquidtight, SPR-CU-AS

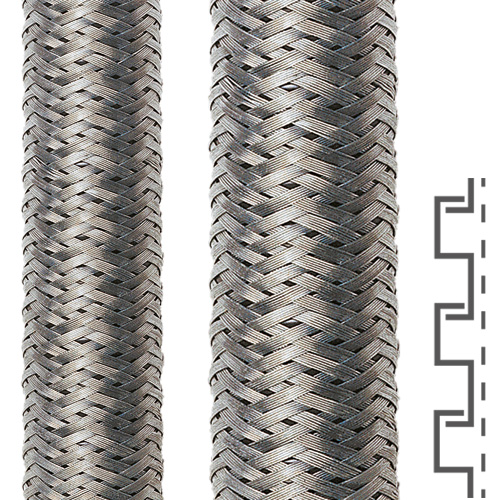

The Flexa SPR-CU-AS 14016701022 (Old Part Number 4016.701.022) is a 22.0 x 27.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with an over-braid of cross woven round tinned-copper wires.

It features a square fold, S-profile interlocking construction for outstanding mechanical protection. The tinned-copper wire braiding provides a high level of EMI/RFI shielding protection making it ideal for installations exposed to RFI, radio frequency interference. The SPR-CU-AS is EMC compliant and provides an EMI/RFI screening factor up to 80 dB at frequencies up to 30 MHz..

Applications for SPR-CU-AS conduits include: signal transmission systems, communication equipment, power electronics, servo motor cable shielding protection, robot wiring protection, autonomous and semi-autonomous electric vehicle drivetrain cable shielding, shielding of communication links between ECU’s, LIDAR, GPS and other sensors.

If you need Metric threaded fittings for your application, use the US-M, metric threaded straight conduit fittings for terminating the conduit ends.

If you need PG threaded fittings for your application, explore the US-P, PG threaded straight conduit fittings for terminating the conduit ends.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 3 – 4 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$2,912.92	US$2,912.92
2	US$2,767.27	US$5,534.55
5	US$2,621.63	US$13,108.14
10+	US$2,475.98	US$24,759.82+

Unit Cost : US$

Extended Cost : US$2912.92

Specifications

Package Size	50m (164 ft) per roll
Product Type	Metal Conduit
Brand	Flexa
Family	SPR-CU-AS
Part Number	14016701022
Part Number (Old)	4016.701.022
Colour	Metallic
OD Outside Diameter (mm)	27
ID Inside Diameter (mm)	22
Static Bend Radius (mm)	45
Dynamic Bend Radius (mm)	115
Weight (kg\|m)	0.51
Material	Galvanized Steel
IP Rating	IP40
Low Temperature Rating (°C)	-50
High Temperature Rating (°C)	250
Customs Tariff Number	83071000
Country of Origin	Germany
GTIN / EAN Code	4025113139801
