Mfr. Part #
14016701017
Categories IBIS FLEXA Braided Flexible Metal Conduit 50 Roll, Metal Conduits, Non-Liquidtight, SPR-CU-AS

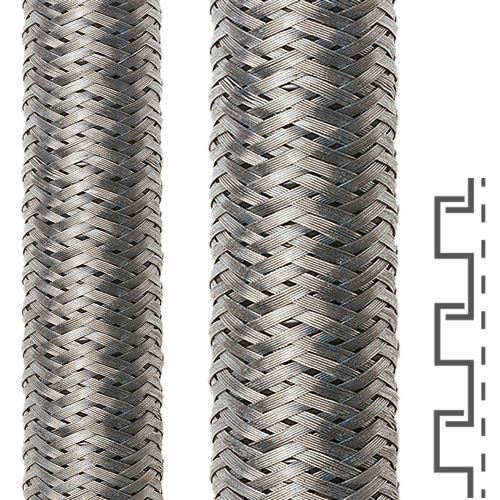

The Flexa SPR-CU-AS 14016701017 (Old Part Number 4016.701.017) is a 17.0 x 21.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with an over-braid consisting of cross woven round tinned-copper wires. The durable square fold, S-profile interlocking construction and copper wire braiding combine for outstanding mechanical, abrasion and EMC protection for wires, cables, pneumatic hoses, and fiber optic bundles. It provides an EMC screening factor up to 30 MHz.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$2,907.47 | US$2,907.47 |
2 | US$2,762.10 | US$5,524.19 |
5 | US$2,616.72 | US$13,083.62 |
10+ | US$2,471.35 | US$24,713.50+ |
Unit Cost : US$
Extended Cost : US$2907.47
Specifications
Product Type | Metal Conduit |
---|---|
Brand | Flexa |
Family | SPR-CU-AS |
Part Number | 14016701017 |
Part Number (Old) | 4016.701.017 |
Colour | Metallic |
OD Outside Diameter (mm) | 21 |
ID Inside Diameter (mm) | 17 |
Static Bend Radius (mm) | 38 |
Dynamic Bend Radius (mm) | 95 |
Weight (kg|m) | 0.35 |
Package Size | 50m Per Roll |
Material | Galvanized Steel |
IP Rating | IP40 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- high tensile, torsional, and bending strength
- highly flexible
- no fraying of the conduit
- approved acc. to DIN EN IEC 61386-23
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- EMC Applications
