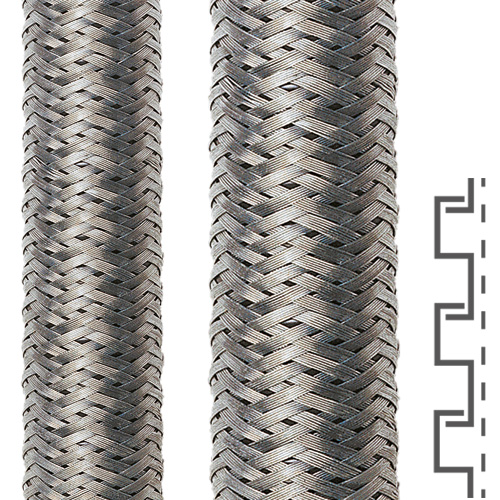

The Flexa SPR-CU-AS 14016701007 (Old Part Number 4016.701.007) is a 7.0 x 10.0 mm ultra-flexible, stretch-resistant, galvanized steel conduit with an over-braid consisting of cross woven round tinned-copper wires. The durable square fold, S-profile interlocking construction and copper wire braiding combine for outstanding mechanical, abrasion and EMC protection for wires, cables, pneumatic hoses, and fiber optic bundles. It provides an EMC screening factor up to 30 MHz.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$1,582.27 US$1,582.27
2 US$1,503.16 US$3,006.31
5 US$1,424.04 US$7,120.22
10+ US$1,344.93 US$13,449.30+
Unit Cost : US$
Extended Cost : US$1582.27
Add to Quote

Specifications

Product Type

Metal Conduit

Brand

Flexa

Family

SPR-CU-AS

Part Number

14016701007

Part Number (Old)

4016.701.007

Colour

Metallic

OD Outside Diameter (mm)

10

ID Inside Diameter (mm)

7

Static Bend Radius (mm)

16

Dynamic Bend Radius (mm)

40

Weight (kg|m)

0.12

Package Size

50m Per Roll

Material

Galvanized Steel

IP Rating

IP40

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

250

Data Sheet

Properties

  • high tensile, torsional, and bending strength
  • highly flexible
  • no fraying of the conduit
  • approved acc. to DIN EN IEC 61386-23
  • screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
  • EMC Applications
