Flexa FLEXAgraff-CU-PU 2540.707.011 / 12540707011

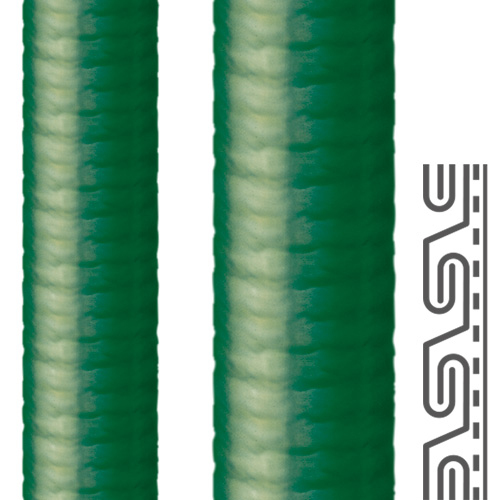

The Flexa FLEXAgraff-CU-PU 12540707011 (Old Part Number 2540.707.011) is an 11.0 x 15.0 mm liquidtight galvanized steel conduit with an over-braid consisting of cross woven round tinned-copper wires all sealed by a green polyurethane (PU) protective jacket. The bend-limiting, interlocked construction, PU sheathing, and wire braiding combine for outstanding mechanical, abrasion, EMC shielding, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. It provides up to 80 dB EMC screening for up to 30 MHz.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,408.44 | US$1,408.44 |
| 2 | US$1,338.02 | US$2,676.04 |
| 5 | US$1,267.60 | US$6,337.98 |
| 10+ | US$1,197.17 | US$11,971.74+ |
Unit Cost : US$
Extended Cost : US$1408.44
Specifications
| Package Size | 25m (82 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | FLEXAgraff-CU-PU |
| Part Number | 12540707011 |
| Part Number (Old) | 2540.707.011 |
| Colour | Green |
| OD Outside Diameter (mm) | 14 |
| ID Inside Diameter (mm) | 11 |
| Static Bend Radius (mm) | 50 |
| Dynamic Bend Radius (mm) | 125 |
| Weight (kg|m) | 0.28 |
| Material | Galvanized Steel, Jacket: PU |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113177384 |
Data Sheet
Properties
- V2 according to UL 94
- high stretching and twisting strain
- liquid tight
- widely resistant to acids and solvents
- resistant to oil, benzine, grease
- free of halogen, silicone, cadmium
- microbe resistant
- flame-resistant
- high shielding factor [EMC]
- approved acc. to DIN EN IEC 61386-23
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
- EMC Applications
