Flexa USZ-M 5017.327.116 / 15017327116

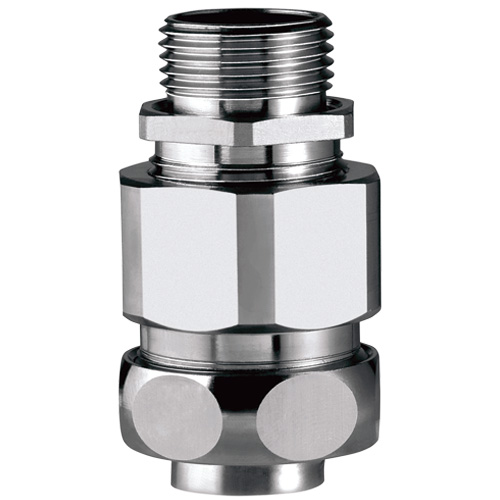

The Flexa USZ-M 15017327116 (Old Part Number 5017.327.116) is described as a metal connector, safety-type, straight, metric M16 x 1.
5 outer thread, strain relief, including ferrule [brass], sealing [TPE] and O-ring [NBR]. Great for applications in EX-area.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$52.31 | US$52.31 |
| 5 | US$47.08 | US$235.40 |
| 10 | US$41.85 | US$418.48 |
| 20 | US$39.23 | US$784.65 |
| 50+ | US$36.62 | US$1,830.85+ |
Unit Cost : US$
Extended Cost : US$52.31
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USZ-M |
| Part Number | 15017327116 |
| Part Number (Old) | 5017.327.116 |
| Fits Conduit Types | FLEXAgraff-CU-AS |
| Thread Type | Metric |
| Thread Size | M16 x 1. 5 |
| Thread Length C (mm) | 10. 0 |
| Body Length D (mm) | 48. 0 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 14. 0 |
| ΦI Inside Diameter (mm) | 9. 0 |
| ΦB Max Outer Diameter (mm) | 23. 0 |
| Weight (kg|100) | 4.070 |
| Package Size | 10 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 100 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration- and tensionproof
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
Certifications
