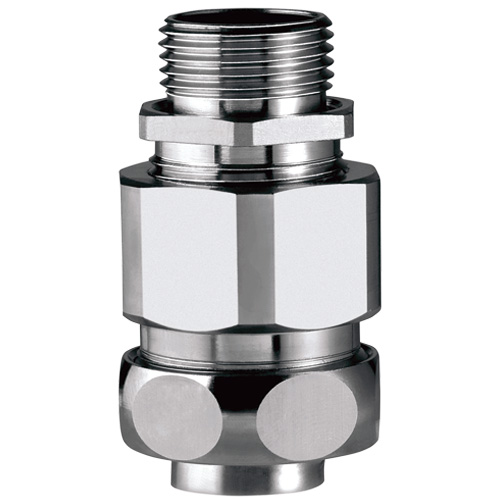

Flexa USZ-M 5016.328.020 / 15016328020
The Flexa USZ-M 15016328020 (Old Part Number 5016.328.020) is described as a metal connector, safety-type, straight, metric M20 x 1.
5 outer thread, strain relief, including ferrule [brass], sealing [TPE] and O-ring [NBR]. Great for applications in EX-area.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$65.40 | US$65.40 |
| 5 | US$58.86 | US$294.30 |
| 10 | US$52.32 | US$523.20 |
| 20 | US$49.05 | US$981.00 |
| 50+ | US$45.78 | US$2,289.00+ |
Unit Cost : US$
Extended Cost : US$65.4
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USZ-M |
| Part Number | 15016328020 |
| Part Number (Old) | 5016.328.020 |
| Fits Conduit Types | FLEXAgraff-PU-AS, FLEXAgraff-PU-F, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC-AS |
| Thread Type | Metric |
| Thread Size | M20 x 1. 5 |
| Thread Length C (mm) | 10. 0 |
| Body Length D (mm) | 49. 0 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 21. 0 |
| ΦI Inside Diameter (mm) | 15. 5 |
| ΦB Max Outer Diameter (mm) | 31. 0 |
| Weight (kg|100) | 6.990 |
| Package Size | 10 pcs |
| IP Rating | IP 65 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 100 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration- and tensionproof
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
